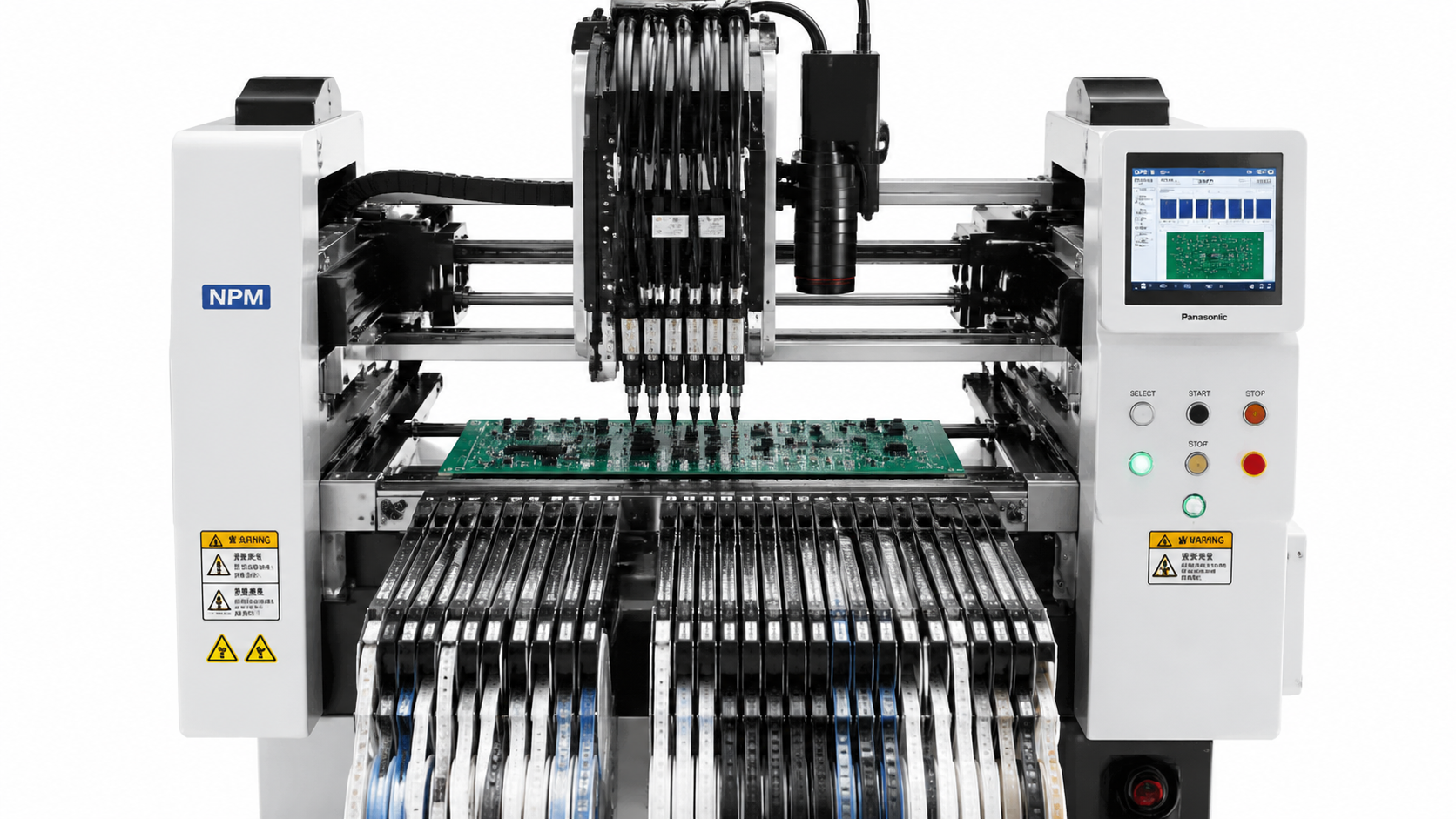

Pick and Place Machine Maintenance That Prevents Drift

Pick and place machine drift can quietly erode SMT soldering accuracy, circuit board assembly yield, and long-term compliance. For engineers, operators, and procurement teams, understanding how preventive maintenance aligns with pick and place specifications, reflow soldering stability, and thermal management compliance is essential to protecting electronic parts, circuit components, and semiconductor compliance performance.

Why pick and place machine drift becomes a costly SMT risk

In SMT assembly, drift rarely starts as a dramatic failure. It usually appears as a small placement deviation, a nozzle vacuum inconsistency, feeder indexing error, or vision offset that gradually pushes the process outside the intended pick and place specifications. For operators, that means more line stops. For quality teams, it means more rework and inspection pressure. For procurement and finance stakeholders, it means hidden cost accumulation rather than a single obvious repair event.

The practical concern is that a machine can still run while losing positional stability. A line may continue producing boards for 1 shift, 1 week, or even 1 month before recurring tombstoning, skewed components, or marginal solder joints are correctly linked back to placement drift. In high-mix EMS environments, where package sizes range from larger passive devices down to fine-pitch ICs and micro-components, this delay makes root-cause analysis slower and more expensive.

Drift also has downstream effects. A placement offset that seems minor at the machine level can amplify during reflow soldering, especially when solder paste volume, board warpage, and thermal profile are already operating close to tolerance limits. That is why maintenance cannot be isolated from process engineering. It must connect machine condition, soldering repeatability, PCB dimensional stability, and thermal management expectations into one control strategy.

For technical evaluators and project managers, the key question is not whether drift exists, but how early it is detected and how consistently it is prevented. SiliconCore Metrics supports this decision model by translating SMT placement precision metrics, component reliability considerations, and compliance-oriented data into structured benchmarks that engineering and procurement teams can actually act on.

What drift usually affects first

• Centroid accuracy on smaller passive components, especially where pad geometry leaves little self-alignment margin during reflow.
• Vision correction consistency for fine-pitch packages, BGAs, QFNs, and polarity-sensitive parts.
• Feeder repeatability during longer production runs, particularly after 8–12 hours of continuous operation.
• Nozzle pickup stability when maintenance intervals are extended beyond the recommended daily and weekly checks.

These failure patterns matter because they often spread across quality, delivery, and cost. A maintenance plan that only reacts to alarms misses the broader financial impact on yield, warranty exposure, and compliance documentation.

Which maintenance actions prevent drift before yield starts falling?

Preventive maintenance for pick and place equipment works best when it is layered by frequency. Daily tasks should focus on contamination, vacuum stability, nozzle condition, and camera cleanliness. Weekly tasks should verify feeder alignment, lubrication status where applicable, and basic motion repeatability. Monthly or quarterly tasks should address calibration, axis wear inspection, belt or linear guide condition, and machine-to-process correlation with SPI or AOI data.

A common mistake is to treat maintenance as a fixed checklist regardless of product mix. In reality, a line placing 0402 and larger standard devices faces a different drift risk profile than a line placing fine-pitch processors, power management ICs, and thermally sensitive semiconductor packages. The smaller the tolerance window, the more often placement verification should be linked to live production evidence rather than calendar-only intervals.

For after-sales maintenance teams and production supervisors, the most effective drift prevention approach is to define 3 control layers: mechanical condition, placement verification, and process correlation. Mechanical checks alone do not reveal whether offsets are affecting solder joint formation. Process correlation closes that gap by comparing machine data with actual board-level quality results over 1 lot, 1 day, and 1 weekly trend cycle.

SCM’s independent benchmarking approach is especially useful here because it separates marketing claims from measurable placement behavior. By using standardized reporting logic across SMT precision metrics, reliability concerns, and compliance expectations, teams can prioritize maintenance actions that protect actual assembly outcomes rather than just machine uptime statistics.

A practical maintenance schedule for drift control

The table below summarizes a maintenance structure commonly used in electronics manufacturing to reduce pick and place machine drift while supporting circuit board assembly consistency.

This schedule is not a substitute for OEM guidance, but it provides a practical framework for organizing maintenance by risk exposure. Lines with 24/7 operation, tighter placement tolerances, or IPC-Class 3 product requirements often need shorter verification cycles and stricter escalation rules.

Four checks that should never be skipped

1. Verify vacuum pickup consistency across multiple nozzles, not just one sample head.
2. Confirm feeder and lane repeatability after changeover, especially in high-mix lines with frequent setup changes.
3. Compare placement quality against SPI and AOI evidence at least once per defined maintenance cycle.
4. Document offset corrections and recurring alarm patterns so maintenance is data-driven rather than memory-based.

How should engineers and buyers evaluate maintenance capability, not just machine price?

Procurement teams often compare placement speed, feeder count, and capital cost first. Those are important, but they do not answer a more expensive question: how stable will the machine remain between maintenance intervals? A lower acquisition price can become less attractive if the platform requires more frequent recalibration, more specialist support, or more scrap exposure during long production runs.

For business evaluators and finance approvers, maintenance capability should be reviewed as a total operational risk item. That includes spare part access, service response windows, software diagnostics, calibration traceability, operator training time, and compatibility with your existing SMT assembly workflow. In many factories, the true cost difference appears over 12–36 months, not at purchase order stage.

Technical assessment teams should also review whether the machine supports meaningful drift monitoring. Can maintenance logs be linked to placement performance? Can recurring offsets be traced by head, feeder bank, product type, or shift pattern? Can process data be compared against compliance reporting needs? If the answer is no, the factory may still be forced into reactive troubleshooting even with a modern platform.

SCM adds value at this stage by helping global buyers interpret equipment and supply chain data through neutral engineering benchmarks. That is especially relevant when comparing Asian manufacturing sources, mixed-vendor SMT lines, and compliance-sensitive applications where reliability, thermal performance, and micro-tolerance behavior must all be reviewed together.

Maintenance-oriented procurement checklist

Before approving a new line or major refurbishment, teams can use the following evaluation matrix to compare maintenance readiness and drift prevention support.

This kind of matrix helps align engineers, buyers, and finance teams around the same decision logic. It turns maintenance from a soft service topic into a measurable procurement criterion tied to yield, compliance, and lifecycle cost.

When a lower-cost option may still be acceptable

A lower-cost platform can be reasonable in low-volume or less demanding applications if the component mix is larger, tolerances are less aggressive, and the business can accept more manual verification. However, once the operation includes fine-pitch packages, thermal-sensitive assemblies, aerospace or medical-adjacent quality requirements, or strict customer audits, drift prevention capability becomes a strategic requirement rather than a nice-to-have feature.

What standards, quality controls, and process links should be reviewed?

Pick and place machine maintenance should not be reviewed in isolation from the broader electronics manufacturing quality system. Teams typically connect it to IPC workmanship expectations, internal calibration procedures, traceability discipline, and ISO 9001-based document control. In higher-reliability environments, the maintenance record itself becomes part of the evidence chain used to explain process stability and nonconformance containment.

For quality managers and safety-focused stakeholders, drift prevention has compliance value because placement inaccuracy can trigger secondary risks: solder joint weakness, electrical spacing concerns, thermal imbalance, or premature field failure. This is especially relevant where active semiconductors, power devices, or densely packed circuit components are sensitive to both positional error and thermal stress during reflow soldering.

A mature control plan usually includes 4 linked records: equipment maintenance history, calibration status, process inspection output, and corrective action closure. Without all 4, factories often know that defects increased but cannot prove whether the root cause was machine drift, material variation, stencil wear, board dimensional change, or operator setup error.

SCM’s engineering repository and technical analyses are valuable because they help cross-functional teams interpret component behavior, SMT precision metrics, dielectric and thermal factors, and supply chain risk within one framework. That matters when a procurement decision must satisfy engineering performance, quality assurance, and commercial accountability at the same time.

Core control points that support compliance-oriented maintenance

• Define acceptable placement verification intervals by product class, such as every shift for standard work and more frequent checks for fine-pitch or high-reliability assemblies.
• Link maintenance completion to first-article confirmation so corrected machines are validated on actual production conditions.
• Retain records of offset adjustment, nozzle replacement, feeder issues, and recurring alarms for at least the same review cycle used in internal quality audits.
• Escalate review when AOI, SPI, and machine logs show repeated correlation over 2–3 lots rather than waiting for customer-visible failures.

Common misconceptions that weaken control

One misconception is that reflow self-alignment will compensate for most placement problems. It can help in some cases, but it does not reliably correct feeder-induced polarity mistakes, fine-pitch offsets, or warped-board interactions. Another misconception is that passing AOI alone proves machine health. AOI may catch visible placement effects, but it does not replace preventive verification of drift mechanisms before defects appear.

A third misconception is that maintenance can be reduced once a line shows stable output for several weeks. In reality, stable output is usually the result of disciplined maintenance, not a reason to relax it. This is particularly true in factories dealing with changing suppliers, varied PCB materials, and demanding semiconductor compliance expectations.

FAQ: practical questions from operators, engineers, and buyers

How often should pick and place calibration be checked to prevent drift?

There is no single universal interval because machine design, operating hours, component size, and quality requirements vary. A practical approach is to combine daily verification, weekly trend review, and monthly or quarterly calibration checks, then tighten that cycle for fine-pitch work, 24/7 utilization, or high-reliability products. The right interval is the shortest one that prevents yield movement before it reaches customers.

Which departments should be involved in drift prevention decisions?

At minimum, operations, maintenance, process engineering, and quality should work together. In larger organizations, procurement, finance, and project leadership should also be involved because preventive maintenance affects spare parts planning, service contracts, line utilization, and total cost of ownership over 12–36 months. Cross-functional visibility is often what prevents repeated spending on symptoms instead of root causes.

What are the first warning signs that machine drift is starting?

Early signs include increasing placement offsets on AOI, more frequent nozzle pickup faults, recurring feeder-related defects after changeovers, and growing dependence on operator correction. If these appear over 2–3 production cycles, the line should be reviewed before scrap, rework, and delivery risk rise further.

Does drift prevention matter for procurement teams, or only for maintenance staff?

It matters strongly for procurement because serviceability, spare part access, diagnostics, and maintenance burden directly influence lifecycle cost and operational risk. A machine that looks competitive on purchase price may create higher cost through downtime, compliance pressure, and quality loss if drift control is weak or difficult to document.

Why choose us for technical evaluation and next-step planning

SiliconCore Metrics supports teams that need more than generic maintenance advice. We help translate pick and place machine maintenance, SMT placement precision, component reliability, PCB material behavior, and thermal management considerations into structured technical intelligence that R&D engineers, procurement managers, and quality leaders can use for real decisions.

If you are comparing equipment platforms, reviewing a supplier capability claim, investigating recurring SMT drift, or building a compliance-ready maintenance framework, we can help you evaluate the relevant data points. That may include parameter confirmation, placement precision benchmarking, maintenance risk review, component and assembly compatibility assessment, delivery and sourcing implications, and reporting needs tied to IPC-Class 3 or ISO 9001-oriented workflows.

Our value is independence and engineering depth. We do not treat hardware as a commodity decision. We examine the measurable relationships between machine stability, process repeatability, material behavior, and supply chain risk so your team can make a more defensible technical and commercial choice.

Contact us if you need support with maintenance strategy review, supplier benchmarking, parameter validation, component and process selection, compliance documentation priorities, sample evaluation pathways, or quotation discussions linked to performance risk. For global EMS and semiconductor supply chain stakeholders, that level of clarity can shorten evaluation cycles and improve decision confidence before quality drift becomes a cost problem.
