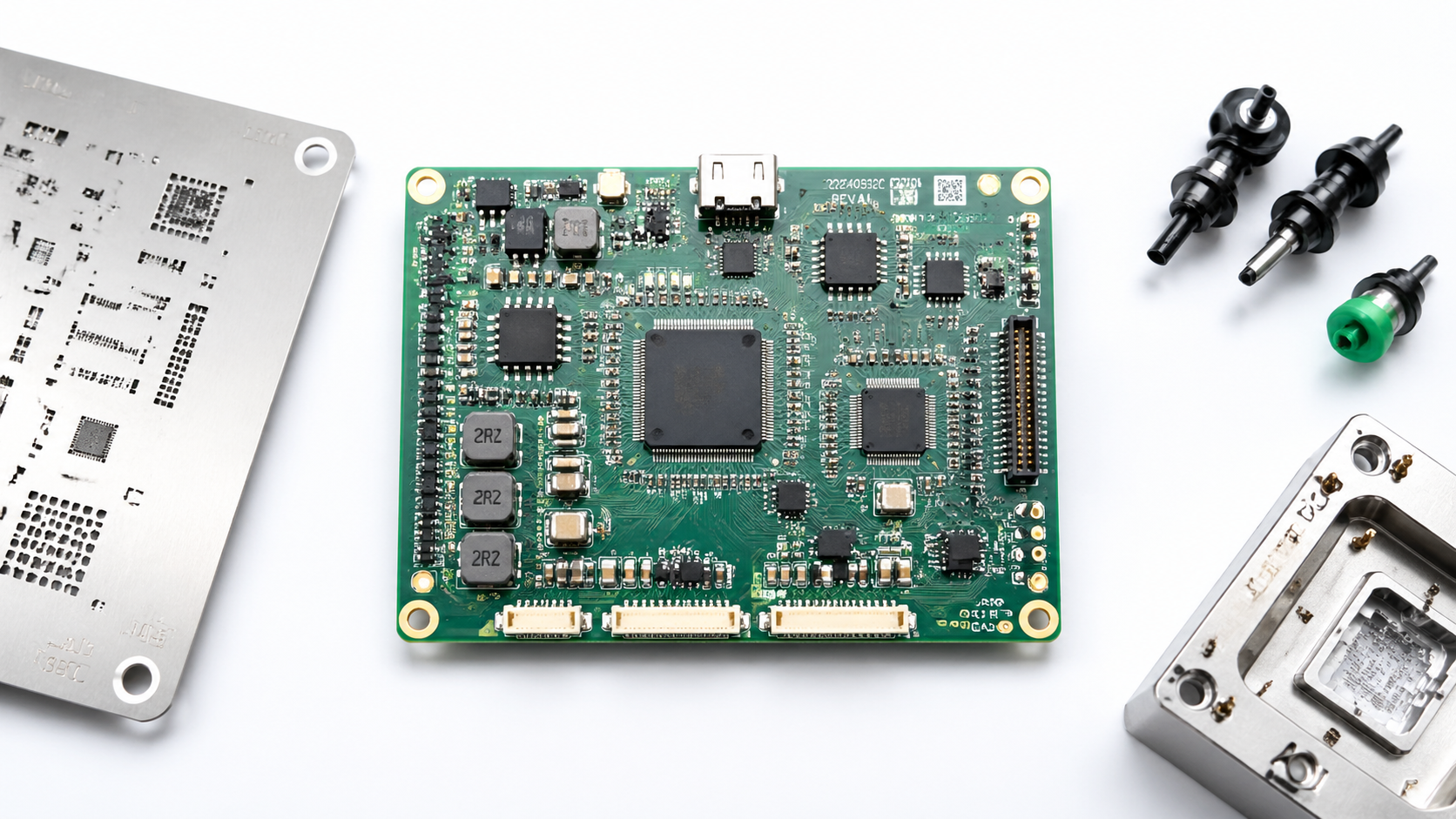

Soldering Techniques That Reduce Rework on PCB Lines

Reducing rework on PCB lines starts with mastering soldering techniques that improve SMT soldering, reflow soldering, and overall circuit board assembly quality. For engineers, operators, procurement teams, and compliance reviewers, understanding how pick and place machine accuracy, pick and place specifications, and PCB compliance affect electronic parts and circuit components is essential to achieving reliable, high-performance production.

In modern electronics manufacturing, rework is more than a repair activity. It is a cost multiplier that can increase labor hours, delay shipments by 24 to 72 hours per batch, and introduce hidden reliability risks into assemblies that are expected to meet IPC-Class 3 or tightly controlled industrial standards. On high-mix or precision PCB lines, even a small rise in solder defects can ripple across inspection, testing, conformal coating, and final delivery.

For information researchers, technical evaluators, operators, quality teams, project leaders, and financial approvers, the key question is practical: which soldering techniques reduce defects at the source rather than after the fact? The answer lies in a disciplined combination of stencil control, paste management, thermal profiling, pad design review, placement accuracy, and process verification tied to measurable thresholds.

From the perspective of SiliconCore Metrics (SCM), the most effective PCB line strategies are data-driven. Independent benchmarking of SMT placement precision, material behavior, and compliance reporting helps manufacturers and buyers make better process choices before rework rates exceed acceptable limits such as 1% to 3% for critical lines. The following sections outline the soldering practices, controls, and purchasing considerations that have the greatest impact on reducing rework across PCB assembly operations.

Why Rework Happens on PCB Lines and Where Soldering Fits

Rework on PCB lines typically starts with a process imbalance rather than a single isolated defect. Common triggers include insufficient solder paste volume, skewed component placement, oxidation on pads or terminations, unstable reflow profiles, and poor thermal matching between board layers and component packages. On dense assemblies with 0.4 mm to 0.5 mm pitch devices, small deviations can quickly create bridges, opens, tombstoning, or voiding.

Soldering is the point where mechanical position, thermal energy, metallurgical bonding, and material cleanliness converge. If any of those variables drift outside their control windows, rework becomes likely. For example, a pick and place machine may be rated at ±30 µm to ±50 µm placement accuracy, but if board warpage, nozzle wear, or feeder inconsistency is ignored, actual placement quality can fall below what the printed specification suggests.

Another issue is that many factories track defects only after AOI or ICT failure. By then, the cost of correction is already higher. A more effective model is to classify defect sources into three stages: print, place, and reflow. In many SMT environments, 50% or more of solder-related issues can be traced back to paste printing rather than the oven itself, which means rework reduction starts earlier than many teams expect.

Typical defect sources by process stage

The table below helps procurement, production, and quality teams align process investments with the stage most likely to create rework. It is especially useful when evaluating line upgrades, stencil vendors, solder paste choices, or placement system maintenance plans.

The key takeaway is that rework reduction should not be treated as a touch-up function. It is a process engineering task with measurable inputs. When manufacturers establish control limits at each stage and audit them at least once per shift or per lot change, defect escape rates tend to fall more predictably than when they rely only on final inspection.

Core warning signs that rework is about to rise

• SPI volume variation exceeding ±20% on fine-pitch pads.
• Placement offset trends approaching pad overlap margins on 0201 or 01005 components.
• Reflow peak variation above 5°C between center and edge zones of the board.
• Repeated AOI calls on the same footprint family across 2 to 3 production lots.

Soldering Techniques That Reduce Defects Before Rework Is Needed

The most effective soldering techniques are preventive, not corrective. On SMT lines, three practices consistently reduce rework: optimizing paste deposition, stabilizing component placement, and matching the reflow profile to board mass and component sensitivity. These are not isolated steps. They form a linked process chain, and a weakness in one stage reduces the value of the others.

1. Control solder paste as a process material

Solder paste should be treated as a controlled engineering input, not a consumable item. Storage at 0°C to 10°C is common for many formulations, followed by a controlled thaw period of 4 to 8 hours before use. If paste is printed while still too cold, viscosity inconsistency can cause incomplete aperture release, especially on area ratios near the lower end of acceptable performance.

Stencil thickness and aperture design must match component mix. A 100 µm stencil may work well for fine-pitch ICs, while mixed technology boards may require step stencils or aperture reductions to avoid bridging on tight leads and excess paste on larger passive parts. Proper under-stencil cleaning frequency, such as every 5 to 10 prints on demanding assemblies, also reduces random defect spikes.

2. Improve placement repeatability, not just nominal accuracy

Published pick and place specifications often focus on best-case placement accuracy, but repeatability under production load is what matters most. Feeder wear, nozzle contamination, board support issues, and component packaging variation all affect solder joint formation. A line that maintains stable placement over an 8-hour shift usually produces lower rework than one with higher nominal speed but drifting alignment performance.

For fine-pitch BGAs, QFNs, and bottom-terminated components, component centering on the paste deposit is essential. Self-alignment during reflow can correct minor offset, but only within limited margins. Once placement error exceeds practical wetting correction, defects become structural rather than cosmetic, and rework becomes both more difficult and more risky.

3. Build thermal profiles around actual assemblies

Reflow soldering should be profiled using representative assemblies, not generic oven recipes. A common target is a heating rate around 1°C to 3°C per second, a soak window near 150°C to 180°C depending on paste chemistry, and a peak temperature aligned to the alloy requirement. For lead-free SAC systems, peak temperatures often land around 235°C to 250°C, but the correct setting depends on board mass, component sensitivity, and time above liquidus.

The goal is to achieve complete wetting while avoiding excessive intermetallic growth, warpage, or component stress. Thermal imbalance across a large multilayer board can create localized opens or head-in-pillow defects even when average oven settings appear acceptable. That is why thermocouple placement across hot and cold spots matters more than relying on a single center measurement.

Process techniques with direct impact on rework

• Use SPI to confirm paste volume and height before placement, especially on components below 0402 size.
• Verify pick and place nozzle wear and centering daily on high-volume lines.
• Run a profile check after any board revision, paste change, or oven maintenance event.
• Separate profiles for heavy copper boards, thermal pads, and moisture-sensitive packages.
• Review pad design and solder mask definition during NPI to prevent repeatable joint defects.

When these techniques are implemented together, manufacturers often see rework fall in a stepwise pattern rather than slowly over time. The biggest gains usually come from reducing repeat defects on the same footprints, because those consume disproportionate operator time and inspection resources.

Parameter Windows, Inspection Points, and Process Benchmarks

A low-rework PCB line depends on measurable control windows. Without quantified thresholds, teams often debate defects after they happen instead of preventing them. Operators need action limits, quality teams need acceptance rules, and procurement or project managers need to know whether a supplier can sustain those conditions across different board families and production volumes.

The table below summarizes practical benchmark ranges used in many SMT and circuit board assembly environments. These are not universal specifications, but they are useful reference points when reviewing process capability, incoming line setup, or supplier audit readiness.

The value of these ranges is not that every factory uses the same numbers. Their value is that they create a shared language between engineering, quality, sourcing, and management. A line cannot reduce rework sustainably if one team focuses only on throughput while another measures quality only after failure analysis.

Inspection checkpoints that deserve priority

Inspection should be staged. SPI catches deposition errors before parts are consumed. AOI identifies visual soldering anomalies after reflow. X-ray is critical for BGAs, BTCs, and hidden joints. For critical products, first-article verification and profile confirmation at line start can save far more cost than late-stage debugging. A 15-minute setup validation often prevents hours of downstream rework and retest.

A practical 5-step control sequence

1. Confirm board support, stencil condition, and paste lot readiness before print.
2. Run SPI on the first prints and compare critical pad families against target values.
3. Verify pick and place alignment on polarity-sensitive and fine-pitch devices.
4. Profile or validate the reflow recipe at startup and after material changes.
5. Use AOI and selective X-ray sampling to close the loop on hidden defect risk.

For technical evaluators and quality managers, process benchmarks are also useful in supplier qualification. If a contract manufacturer cannot describe how it controls paste life, placement drift, and thermal profile variation, the risk of rework-related delays is materially higher even if unit pricing looks attractive on paper.

Procurement and Compliance Factors That Influence Solder Quality

Rework reduction is not determined only by factory operators. Procurement teams, commercial evaluators, and financial approvers influence solder quality through supplier selection, material specifications, and contract requirements. If the sourcing process rewards only low piece price, the manufacturing line may inherit unstable solder paste, inconsistent PCB finish quality, or insufficient process documentation.

PCB compliance and component quality have direct effects on soldering performance. Surface finish variation, pad coplanarity, moisture exposure, packaging damage, and oxidation can all increase solder defects. For mission-critical or high-reliability assemblies, buyers should ask for evidence that incoming boards and parts are controlled for shelf life, storage conditions, traceability, and applicable standards such as IPC workmanship requirements and ISO-based quality systems.

Supplier assessment priorities for lower rework risk

The following comparison framework is useful when reviewing EMS providers, PCB suppliers, or process partners. It helps cross-functional teams connect commercial decisions with actual soldering outcomes instead of treating quality and procurement as separate discussions.

This is where SCM’s role becomes especially relevant. Independent benchmarking and standardized compliance reporting can reduce ambiguity between global buyers and Asian manufacturing hubs. Instead of relying only on sales claims, decision-makers can compare process readiness through measurable indicators such as placement precision metrics, material behavior, and long-term reliability under stress conditions.

Questions buyers should ask before approving a supplier

• How often are stencil, placement, and reflow parameters reviewed during a normal production week?
• What is the escalation path if first-pass yield drops below the internal threshold?
• Can the supplier provide profile logs, inspection records, and lot traceability within 24 hours?
• How are moisture-sensitive devices and oxidation-prone components controlled before assembly?

For business evaluators and finance stakeholders, these questions matter because rework is rarely visible in quoted unit cost. It appears later as delayed shipments, added test cycles, higher scrap exposure, warranty risk, and project schedule instability.

Implementation Roadmap for Engineers, Operators, and Quality Teams

Reducing rework on PCB lines requires an implementation plan that is realistic for production. A strong roadmap does not begin with expensive equipment upgrades. It begins with mapping the top defect families, identifying whether they originate in print, place, or reflow, and assigning ownership for each control point. Most facilities can complete an initial assessment in 1 to 2 weeks using existing AOI, SPI, and repair records.

Phase 1: Baseline the current process

Start with the last 30 to 90 days of defect data. Group rework by component type, package family, board design, line, shift, and material lot where available. This often reveals that a small number of repeat defect modes account for a large share of total rework hours. Typical examples include tombstoning on small passives, bridging on fine-pitch leads, or voiding on thermal pads.

Phase 2: Tighten the process window

Once the major defect sources are known, narrow the control window around the process variables most closely associated with those defects. That may include stencil cleaning frequency, paste age at the printer, feeder replacement intervals, board support tooling, or oven recipe validation. Even simple control actions, if applied consistently across 3 shifts or multiple lines, can reduce recurring soldering problems quickly.

Phase 3: Standardize and audit

Improvements only last if they are standardized. Work instructions should define who checks what, when, and against which limit. For example, profile verification after every recipe change, nozzle inspection at shift start, and paste discard rules after a defined working life. Audit frequency can be weekly for stable products and more frequent during NPI or customer-specific launches.

A practical cross-functional rollout checklist

1. Identify the top 5 rework causes by labor time and frequency.
2. Link each cause to a measurable process variable and an owner.
3. Validate critical pick and place specifications against actual board and package mix.
4. Review PCB compliance data, pad design, and material condition before blaming assembly alone.
5. Set a 30-day review cycle to confirm whether defect recurrence is falling.

For after-sales and maintenance personnel, this roadmap also improves field reliability. Boards that avoid repeated localized heating during rework usually preserve pad adhesion, laminate integrity, and joint reliability better than assemblies that require multiple repair cycles. That matters for products expected to operate in thermal stress, vibration, or long service intervals.

For project managers, the implementation benefit is schedule control. A line with stable soldering performance is easier to forecast for pilot builds, qualification lots, and scaled production. This reduces the uncertainty that often disrupts product introduction timelines and approval gates.

FAQ: Practical Questions About Reducing Rework in PCB Assembly

How do you know whether solder defects are caused by printing or reflow?

Use staged evidence. If SPI shows low or inconsistent paste volume before placement, the defect likely begins in printing. If deposits are stable but defects appear after reflow, then thermal profile, placement offset, board warpage, or material oxidation may be involved. Reviewing 10 to 20 boards with linked SPI, AOI, and X-ray data usually provides a clearer answer than isolated operator observations.

What pick and place specification matters most for solder quality?

The most useful metric is not only peak placement speed or brochure accuracy. It is repeatable placement performance under real production conditions, including feeder stability, nozzle condition, board support, and component handling. For fine-pitch devices and miniature passives, repeatability across long runs can matter more than headline speed because solder self-alignment can only correct limited offset.

How often should reflow profiles be checked?

A profile should be checked during NPI, after oven maintenance, after solder paste or alloy changes, after major board design changes, and whenever defect trends suggest thermal drift. On stable high-volume products, many teams still verify at defined intervals such as weekly or per changeover cycle. The exact frequency depends on product criticality and process stability.

What should procurement teams prioritize to reduce downstream rework?

Prioritize process capability, traceability, PCB finish consistency, and documented inspection controls alongside price. A low-cost source that cannot provide clear data on solderability, storage conditions, or process logs may create far higher lifecycle cost through rework, schedule disruption, and field failures. For critical builds, independent benchmarking and compliance reporting add decision value.

Common mistakes that increase rework

• Using one generic reflow profile for boards with very different thermal mass.
• Assuming machine brochure accuracy equals actual line performance.
• Ignoring stencil wear and under-stencil cleaning intervals.
• Treating supplier quality records as optional during sourcing decisions.

Reducing rework on PCB lines is ultimately a systems discipline. Strong soldering technique, accurate placement, stable reflow control, and verified PCB compliance work together to raise first-pass yield and protect long-term reliability. For engineers, operators, sourcing teams, quality reviewers, and project leaders, the strongest results come from measurable controls rather than assumptions.
