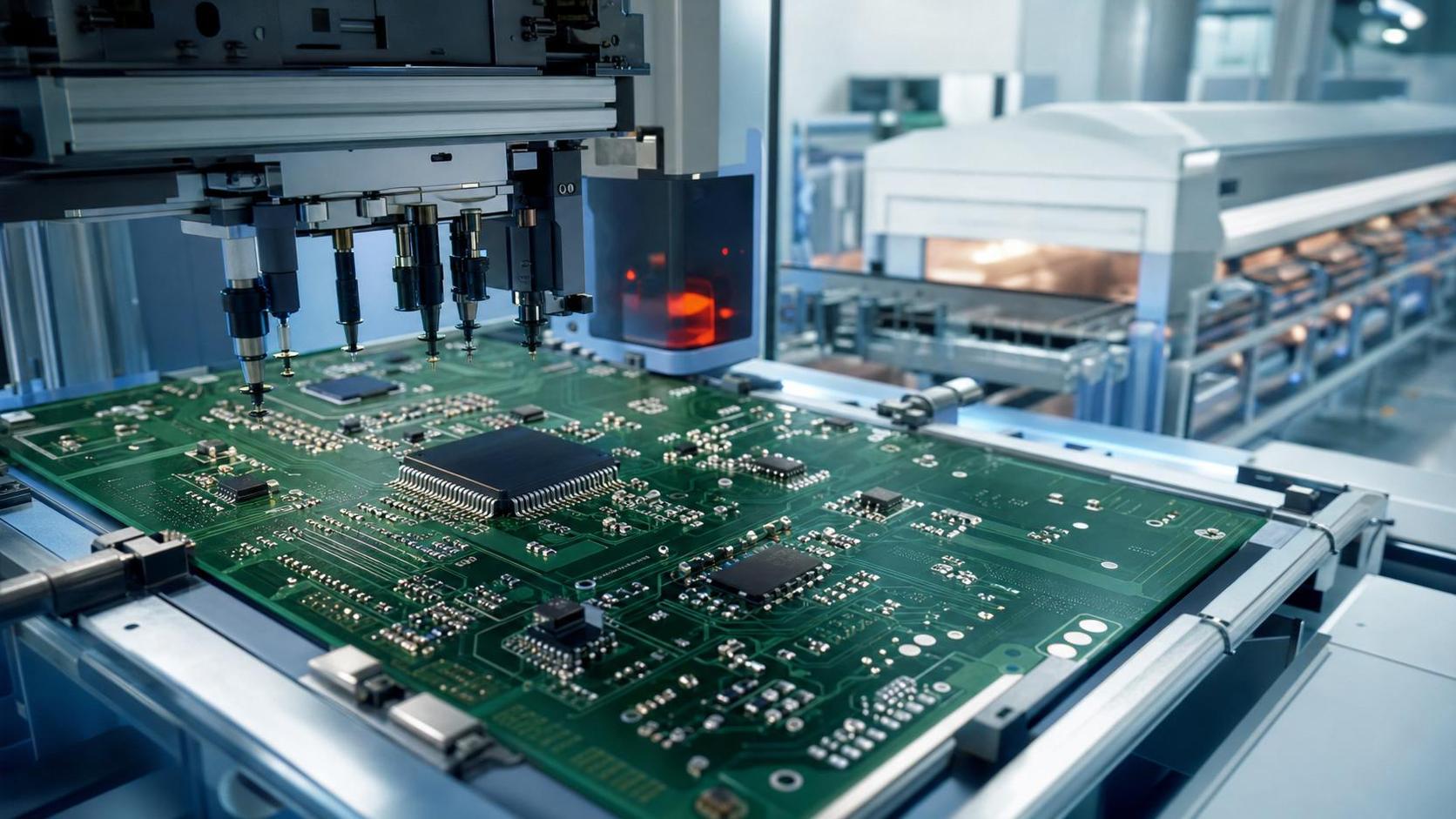

Fine Pitch PCB Assembly: How to Reduce Bridging and Misalignment

Fine Pitch PCB Assembly: How to Reduce Bridging and Misalignment

In fine pitch PCB assembly, tiny process shifts create outsized defects. A few microns too much paste, slight nozzle drift, or unstable heat can quickly turn into bridging and misalignment.

That is why yield improvement in fine pitch PCB assembly starts with measurement, not guesswork. Stable outcomes come from controlling stencil geometry, placement accuracy, board condition, and reflow consistency together.

For organizations reviewing suppliers or internal lines, the real question is simple. Which process controls actually reduce defects, and which claims are not backed by data?

At SiliconCore Metrics, this is the practical lens. Hardware performance is treated as measurable science, with benchmarking tied to SMT precision, IPC-Class 3 expectations, and long-term assembly reliability.

Why Bridging and Misalignment Happen in Fine Pitch PCB Assembly

Bridging usually begins before reflow. Excess solder paste, poor aperture release, and inaccurate gasketing often load too much material onto closely spaced pads.

Misalignment can begin even earlier. Warped boards, incorrect fiducial recognition, nozzle wear, or pickup force variation can shift components before the oven ever matters.

In fine pitch PCB assembly, these defects are linked. A slightly skewed component plus overprinted paste often turns into solder bridging after surface tension pulls the joint sideways.

This also means single-point fixes rarely hold. Reducing bridging and misalignment requires a closed process loop across printing, placement, inspection, and reflow.

Common root causes worth checking first

• Stencil apertures too large for pad spacing and paste type.
• Solder paste slump caused by poor viscosity control or storage handling.
• Printer alignment drift between first article and full production run.
• Placement offsets from nozzle wear, vacuum instability, or vision errors.
• Uneven reflow profile creating component float or solder spread.
• PCB coplanarity problems, especially on dense multilayer boards.

Control Solder Paste Volume Before It Becomes a Yield Problem

If fine pitch PCB assembly has a defect gatekeeper, it is paste deposition. Too much paste increases bridging risk. Too little paste increases opens and weak joints.

Stencil design should match pad geometry, alloy behavior, and pitch. For very tight spacing, aperture reductions and home plate modifications often help control paste spread.

Stencil thickness also matters. A thickness that works for larger passive parts can still overload fine pitch leads or bottom-terminated packages.

More visible lately is the role of release consistency. Even a good aperture design fails if the paste does not release uniformly across the panel.

Practical controls for paste printing

1. Use solder paste inspection to monitor volume, height, and area trends, not just pass or fail.
2. Tighten stencil cleaning intervals when fine pitch pads sit near larger deposits.
3. Verify paste temperature conditioning before use to reduce viscosity swing.
4. Track transfer efficiency by package family, not only by board average.
5. Review aperture wall quality and electropolishing for difficult release areas.

For supplier evaluation, ask for CpK or similar process capability data on paste volume at the fine pitch locations. General line averages do not tell the full story.

Improve Placement Accuracy With Data, Not Assumptions

Placement claims in fine pitch PCB assembly often sound strong on paper. The useful metric is not brochure speed. It is real repeatable accuracy at the package and board level.

A machine may meet nominal accuracy, yet still create misalignment if feeder variation, component tolerances, and board expansion are not included in the control plan.

This is where benchmark-driven review becomes valuable. Independent verification of placement precision reveals whether the process is stable during real production conditions.

Placement factors that deserve close attention

• Fiducial quality, contrast, and local versus global referencing strategy.
• Nozzle maintenance intervals and pickup centering performance.
• Feeder pitch consistency for small-outline and micro-package parts.
• Board support tooling to limit flex during placement.
• Compensation models for thermal expansion on larger or thinner panels.

In actual production, a small offset may still self-correct in reflow. But once offsets combine with high paste volume, fine pitch PCB assembly loses that margin quickly.

Stabilize Reflow to Prevent Component Float and Solder Spread

Reflow does not usually create the original error, but it often amplifies it. An unstable thermal profile can widen bridging and make small placement offsets become visible defects.

Ramp rate, soak time, peak temperature, and time above liquidus all affect wetting behavior. Fine pitch PCB assembly benefits from profiles that promote even wetting without aggressive solder movement.

Nitrogen may help in some high-density applications, especially when oxidation margins are tight. Still, atmosphere control should support, not replace, good print and placement discipline.

What to verify in the oven process

1. Profile across the full board, not only a center location.
2. Check edge-to-center delta on dense multilayer designs.
3. Review conveyor stability for board vibration or tilt.
4. Confirm profile repeatability after maintenance or recipe change.

From a risk standpoint, long-term reliability matters as much as first-pass yield. Overheated joints may pass inspection yet underperform in thermal cycling and field stress.

Use Inspection Data to Build a Corrective Loop

Inspection only adds value when it closes the loop. In fine pitch PCB assembly, SPI, AOI, and X-ray should work as connected sources, not isolated checkpoints.

SPI shows whether printing drift is emerging. AOI reveals visible skew and bridging. X-ray helps when hidden joints or bottom-terminated packages mask the actual failure mode.

The stronger signal is trend correlation. When paste height on a specific aperture rises, does misalignment on the same package family rise afterward?

That level of correlation is what separates reactive troubleshooting from process control. It also makes supplier comparison far more credible.

Useful metrics for ongoing review

How to Evaluate a Fine Pitch PCB Assembly Supplier

When external sourcing is involved, marketing language is not enough. Ask for engineering evidence tied to the exact pitch range, package type, and reliability class you need.

A capable fine pitch PCB assembly partner should provide traceable process windows, inspection trend reports, and documented controls for stencil design, placement verification, and thermal profiling.

This is where independent benchmarking adds value. SCM focuses on turning manufacturing variability into comparable data across PCB fabrication, SMT assembly, components, and thermal packaging.

That approach helps reduce supply chain risk. It also supports procurement and engineering teams that need evidence of IPC-Class 3 readiness, ISO 9001 discipline, and repeatable micro-tolerance control.

Questions that usually reveal process maturity

• What defect rate is typical for comparable fine pitch PCB assembly builds?
• How is paste volume variation monitored and corrected in production?
• What placement accuracy data is available by package family?
• How are warped boards, thermal mass variation, and hidden joints handled?
• Which reliability tests support long-term field performance claims?

A Practical Path to Fewer Defects

Reducing bridging and misalignment in fine pitch PCB assembly is rarely about one dramatic fix. It is usually the result of tighter limits, faster feedback, and better correlation across process steps.

Start with paste volume control. Then verify placement precision under production conditions. After that, stabilize the thermal profile and connect inspection data to corrective action.

That sequence tends to deliver the fastest yield improvement. More importantly, it produces evidence that the process can hold performance as assemblies become denser and more demanding.

For teams comparing suppliers, qualifying new programs, or tightening an existing SMT line, the most reliable fine pitch PCB assembly decisions are the ones grounded in measured capability, not assumptions.

A disciplined, data-backed review makes defects easier to prevent, compliance easier to defend, and high-density assembly performance easier to scale.
