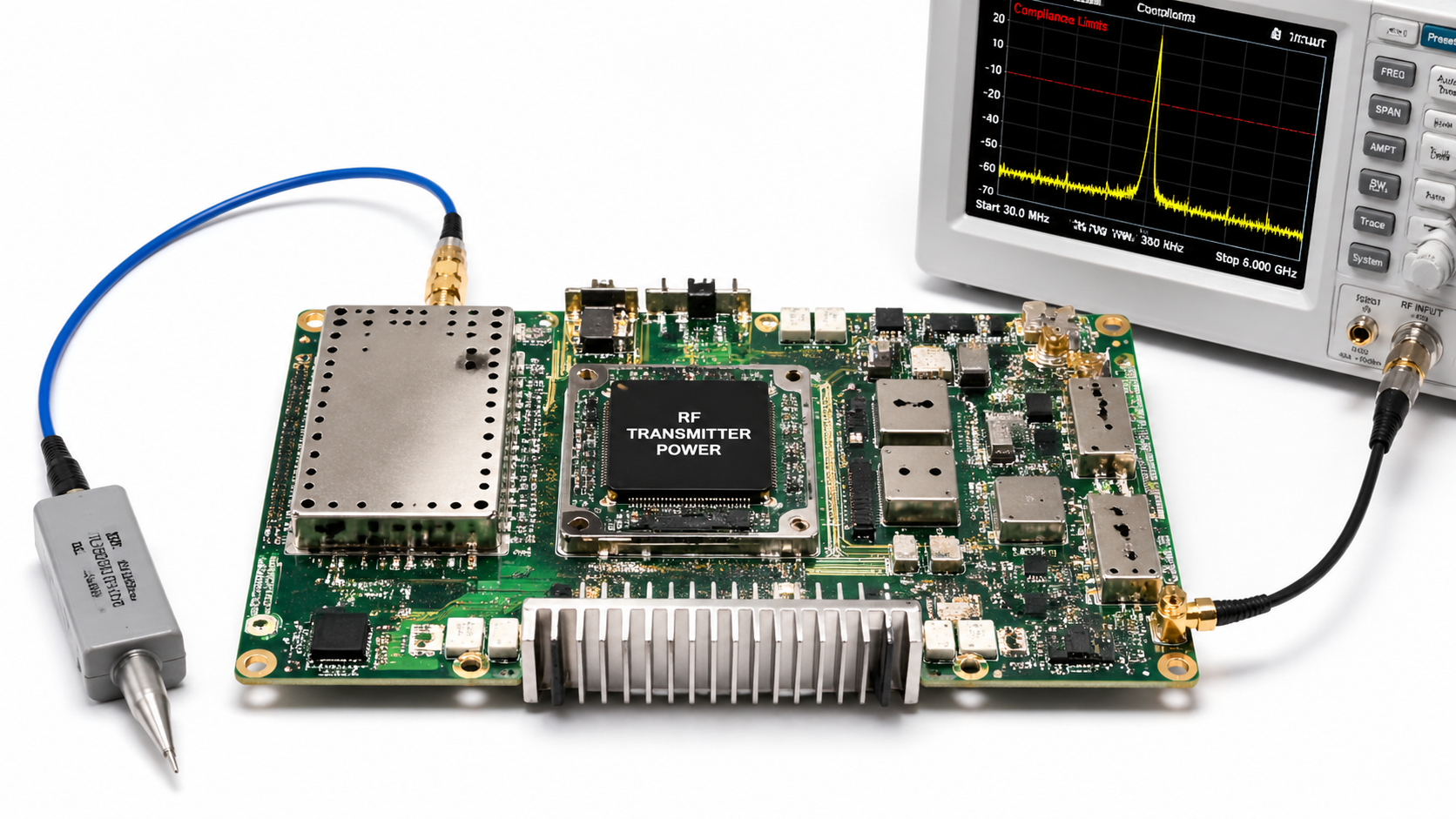

RF Transmitter Power vs Compliance Limits

How far can an RF transmitter go before it exceeds semiconductor compliance, SMT compliance, or PCB compliance limits? For engineers, buyers, and quality teams comparing RF receiver, RF transceiver, and circuit components, understanding power thresholds is essential to performance, safety, and cost control. This guide explains the key trade-offs between output power, regulatory constraints, and thermal management compliance in modern electronic parts and circuit board assembly.

The short answer is this: higher RF transmitter power does not automatically mean better product performance. In real electronic design and sourcing decisions, usable transmitter power is limited by a combination of radio regulations, semiconductor ratings, PCB material capability, thermal design, EMC behavior, and assembly quality. For most teams, the right question is not “How much power can we push?” but “What output power can we sustain compliantly, thermally, and reliably in production?” That is where technical evaluation, supplier qualification, and cost control meet.

What users are really trying to understand when they compare RF transmitter power and compliance limits

When people search for topics like RF transmitter power vs compliance limits, they are usually not looking for theory alone. They want to know whether a transmitter design, module, or finished device can deliver the required range and signal quality without creating certification risk, overheating problems, PCB reliability issues, or sourcing mistakes.

Across engineering, procurement, quality, and project management functions, the practical concerns are usually:

• How much output power is legally allowed in the target market?
• How much power can the RF IC, PA, matching network, and PCB safely handle?
• At what point do thermal stress and EMC failures become likely?
• Will increasing power improve actual system performance, or just raise cost and risk?
• How should teams compare RF transmitter, RF transceiver, and RF receiver architectures during technical evaluation?

That means a useful article must focus less on textbook RF definitions and more on design thresholds, compliance boundaries, manufacturing reality, and decision criteria.

Why transmitter power is always constrained by more than the RF chip alone

In many projects, teams initially look at the semiconductor datasheet and assume the maximum RF output power rating is the decision point. In practice, that is only one layer of the limit stack.

An RF transmitter’s effective compliance boundary is shaped by several interacting factors:

• Regulatory emission limits: Regional rules may cap conducted or radiated output power, occupied bandwidth, spurious emissions, and duty cycle.
• Semiconductor safe operating limits: RF power amplifiers, transceivers, PLLs, and front-end components have absolute maximum ratings, efficiency curves, and junction temperature limits.
• PCB compliance and material behavior: Dielectric stability, trace geometry, copper thickness, loss tangent, and stack-up accuracy affect insertion loss, impedance control, and heat spreading.
• SMT assembly quality: Voiding under thermal pads, solder joint quality, component placement tolerance, and reflow consistency directly affect RF stability and thermal reliability.
• System-level thermal design: Even compliant RF power may become noncompliant after temperature rise shifts gain, frequency stability, or spurious emissions.

So the highest advertised transmitter power is rarely the most useful metric. A lower-power design with better antenna efficiency, cleaner layout, and tighter assembly control often delivers better certified performance and lower field failure risk.

Which compliance limits matter most in real RF products

For technical evaluators and sourcing teams, “compliance” should not be treated as one generic checklist item. Different limit categories affect transmitter power decisions in different ways.

Regulatory RF compliance

This is usually the first external gate. Depending on market and frequency band, products may be limited by:

• Maximum transmit power or EIRP
• Spurious and harmonic emissions
• Out-of-band emissions
• Channel bandwidth and spectral mask
• Duty-cycle or access protocol requirements

A transmitter can meet power goals on the bench yet still fail certification if harmonics rise with output level or if antenna gain pushes total radiated power above the allowed threshold.

Semiconductor compliance and reliability limits

At chip level, the key issue is not just “can it transmit now” but “can it transmit over life, temperature, voltage variation, and process spread.” Important checkpoints include:

• Maximum junction temperature
• PA efficiency at target output power
• Linearity at high drive levels
• Load mismatch tolerance
• Degradation under continuous high-duty operation

This is especially important when comparing low-cost RF transceiver solutions that appear equivalent in nominal output power but differ significantly in thermal headroom and long-term drift.

PCB compliance limits

PCB capability is often underestimated in RF projects. At higher transmit power, the board becomes part of the RF and thermal system. Risk areas include:

• Impedance mismatch from stack-up variation
• Excess dielectric loss in unsuitable materials
• Copper heating around PA output stages
• Ground return discontinuity increasing emissions
• Material instability under rework or thermal cycling

For high-frequency and higher-power designs, poor PCB consistency can turn a compliant prototype into a noncompliant production run.

SMT and manufacturing compliance

Assembly precision affects both RF performance and heat removal. Common manufacturing-related power limit issues include:

• Voids beneath exposed-pad RF packages
• Misalignment of matching network components
• Inconsistent solder volume on fine-pitch RF devices
• Warpage affecting grounding and shielding contact
• Process drift across contract manufacturing sites

For quality managers and procurement leads, this is where supplier process capability matters as much as component selection.

Does increasing RF transmitter power always improve range and link performance?

No. This is one of the most important practical judgments for buyers and engineers. Increasing output power can improve link budget, but gains are often smaller than expected once real-world system constraints are considered.

Higher transmitter power may be partly offset by:

• Antenna inefficiency
• Poor enclosure integration
• Receiver sensitivity limits
• Multipath and interference conditions
• Thermal throttling in continuous operation

In many products, a better antenna, cleaner RF layout, lower feedline loss, improved shielding, or more sensitive RF receiver provides more reliable system improvement than simply raising transmit power.

This matters commercially. If a team chooses a higher-power PA, thicker copper, better heat spreading, and tighter compliance validation just to gain marginal range improvement, total cost can rise faster than performance value.

How to judge the safe and useful power threshold in an RF design

A practical evaluation framework should combine technical and business criteria. The goal is to identify the highest transmitter power that remains stable, certifiable, manufacturable, and economically justified.

Use the following checkpoints:

1. Start with the target market compliance ceiling

Before optimizing hardware, define the legal transmit power and emission constraints in every target region. This prevents overdesign and reduces redesign risk later.

2. Check semiconductor derating, not just maximum rating

Do not base decisions on absolute maximum output power alone. Review recommended operating conditions, thermal resistance, efficiency curves, and derating behavior at elevated ambient temperatures.

3. Validate PCB stack-up and RF loss budget

Review dielectric constant consistency, loss tangent, copper roughness, impedance tolerance, via design, and ground structure. These parameters affect both effective delivered power and certification margins.

4. Verify SMT process capability for RF thermal packages

For power amplifiers and transceivers with exposed pads or fine-pitch packages, inspect voiding performance, placement accuracy, reflow repeatability, and X-ray quality data from the assembler.

5. Measure system behavior under thermal stress

Test output power, harmonics, frequency stability, and packet error rate across realistic temperature and duty-cycle conditions. Many products pass room-temperature validation but fail at elevated operating temperature.

6. Compare power increase against total system benefit

If a 2 dB power increase demands significantly higher BOM cost, larger thermal margin, more shielding, or certification retesting, the investment may not be justified.

What procurement, quality, and finance teams should ask suppliers before approving a higher-power RF solution

Not every risk is visible in a datasheet. For sourcing and approval workflows, supplier questioning is essential. A stronger RF power claim should be supported by process evidence, not marketing language.

Useful questions include:

• What output power is supported continuously versus peak only?
• At what ambient temperature and duty cycle were those values measured?
• What PCB material and stack-up were used in reference testing?
• What are the measured spurious and harmonic margins at target power?
• What SMT voiding and assembly yield data exist for the RF package?
• What derating guidance is recommended for production deployment?
• Has the design passed multi-region compliance pre-scan or formal certification?
• What field reliability or HTOL-related evidence supports sustained operation?

For commercial stakeholders, these questions help convert technical claims into risk-adjusted purchasing decisions. They also reduce the chance of hidden downstream costs such as rework, failed certification, delayed launch, or field returns.

Common mistakes teams make when they push RF power too far

Several recurring mistakes appear across RF product development and supplier evaluation:

• Using peak power as if it were continuous power: This creates unrealistic thermal assumptions.
• Ignoring antenna contribution to total radiated power: A compliant conducted output can still become a noncompliant radiated result.
• Trusting lab prototypes more than production capability: Hand-tuned boards often hide manufacturability problems.
• Overlooking PCB material variation: Small dielectric shifts can affect RF matching and emissions.
• Underestimating SMT quality impact: Voids and grounding inconsistency often emerge only at scale.
• Optimizing only for range: Battery life, thermal aging, BOM cost, and certification risk may worsen.

These mistakes are especially costly in products that combine high-frequency operation, compact board area, and aggressive cost targets.

RF transmitter vs RF transceiver vs receiver: why the architecture choice changes the power discussion

Power compliance questions also depend on product architecture.

Standalone RF transmitters are often evaluated on output power and spectral cleanliness, but system integration around the PA becomes critical.

RF transceivers require more balanced analysis. Higher transmit power may increase thermal load that affects receiver sensitivity, frequency accuracy, or duplex behavior within the same device.

RF receivers do not transmit, but receiver sensitivity strongly influences how much transmitter power is actually necessary on the link partner side. In many systems, improving receiver performance can reduce the required transmit power and simplify compliance.

For decision-makers, that means architecture-level optimization often beats brute-force power escalation.

How to make a better engineering and sourcing decision

If your team is evaluating RF modules, semiconductor components, PCB suppliers, or SMT partners, the best decision method is cross-functional. Engineering should define the real link budget and thermal envelope. Quality should assess process capability and compliance evidence. Procurement should compare not only price, but the cost of certification risk and production variation. Finance should evaluate lifecycle cost, not just unit cost.

A robust decision usually favors the solution that delivers:

• Enough transmit power for the use case, with margin
• Clear regulatory compliance evidence
• Stable PCB and assembly performance in volume
• Manageable thermal behavior over duty cycle and environment
• Lower requalification and field-failure risk

That is the practical meaning of balancing RF transmitter power against compliance limits.

Conclusion

RF transmitter power should never be judged in isolation. The true limit is set by the interaction of regulatory rules, semiconductor reliability, PCB capability, SMT quality, antenna behavior, and thermal management. For engineers and evaluators, the most valuable number is not the highest advertised output, but the highest repeatable and certifiable output in real production conditions. For buyers, quality teams, and project owners, that distinction directly affects launch risk, cost control, and long-term product reliability.

In short, better RF performance comes from compliant system design, not simply more power. The smartest path is to validate power targets against certification margins, thermal headroom, board-level capability, and manufacturing consistency before approving components or suppliers.
