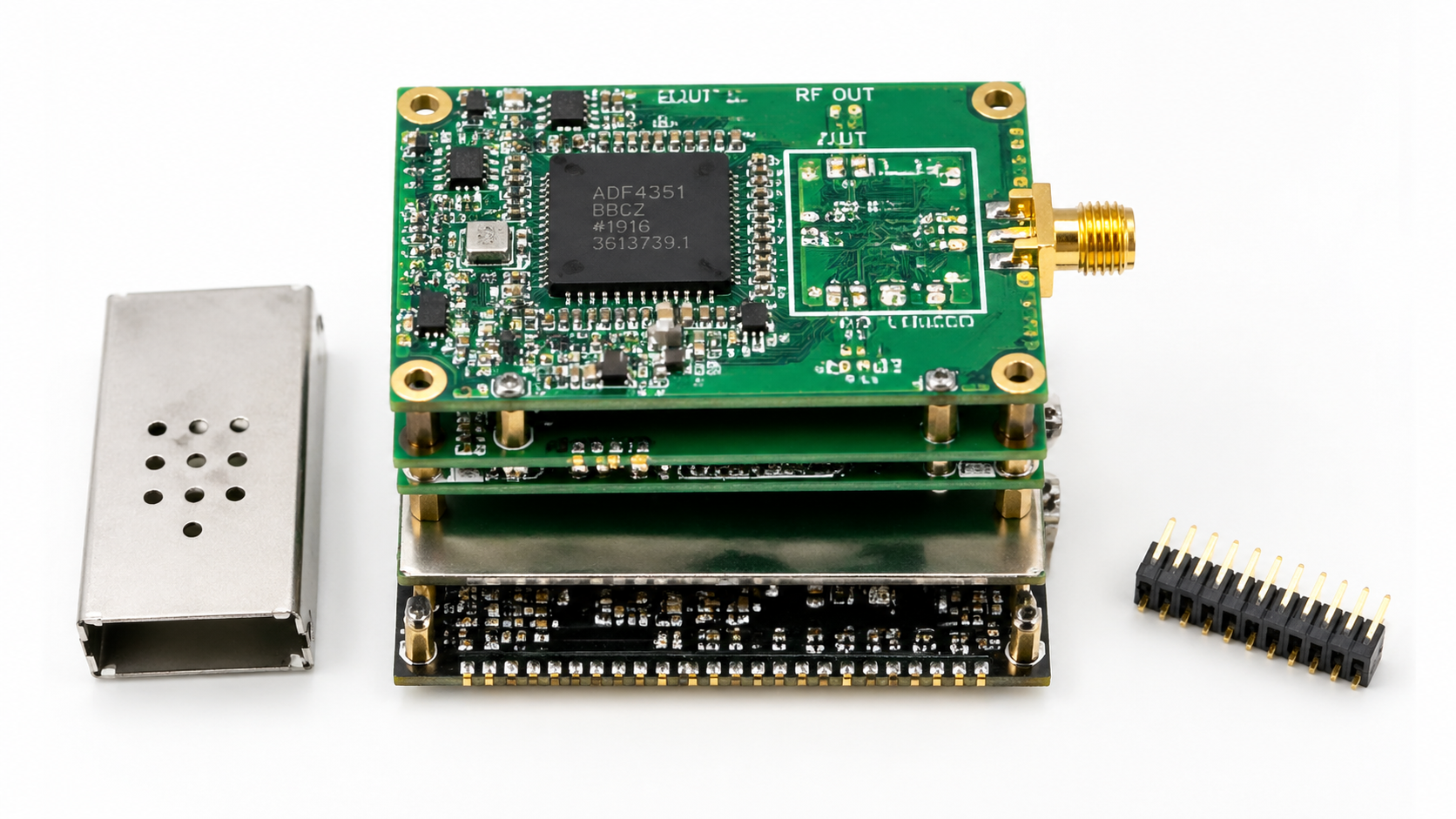

Choosing an RF Transmitter for Stable Range

Choosing an RF transmitter for stable range requires more than matching it with an RF receiver or RF transceiver. Engineers, buyers, and project teams must evaluate signal stability, circuit components, thermal management compliance, and semiconductor compliance to ensure reliable performance in real-world environments. This guide outlines the critical factors that affect range, durability, and integration across modern electronic parts and circuit board assembly applications.

What Really Determines Stable RF Transmitter Range?

A stable RF transmitter range is not defined by output power alone. In practical deployments, range depends on a chain of variables that includes operating frequency, antenna efficiency, PCB layout, receiver sensitivity, enclosure materials, and environmental interference. For procurement teams, this means the cheapest module on paper can become the most expensive option once field failures, redesign cycles, and replacement costs are added.

For technical evaluators, the first screening step is usually to separate laboratory range from operational range. A transmitter tested in a clean environment may perform very differently in a factory, a metal cabinet, a moving vehicle, or an outdoor installation with moisture and temperature swings from -20°C to 60°C. Stable range means consistent packet delivery under real use conditions, not a single peak-distance claim.

SCM approaches RF transmitter selection through data transparency. Instead of treating modules as interchangeable electronic parts, SCM examines dielectric behavior in multilayer PCB structures, SMT placement precision, component tolerance drift, and thermal effects that can alter RF behavior over 2–4 years of service. This is especially relevant for project managers and quality teams working under IPC-Class 3 expectations and strict validation timelines.

In many B2B electronics programs, stable range also depends on integration discipline. A strong transmitter can still underperform if the matching network is poorly tuned, if the power rail has ripple, or if the board stack-up changes between prototypes and mass production. That is why selection decisions should include both component-level review and manufacturing-process review.

Four technical layers that influence usable range

• RF link budget: output power, receiver sensitivity, path loss, and antenna gain must work together rather than being evaluated in isolation.
• Hardware implementation: PCB dielectric constants, trace impedance control, ground continuity, and solder joint consistency directly affect signal integrity.
• Thermal and environmental stability: transmitter behavior can drift during continuous operation cycles of 8–24 hours, especially in compact assemblies with limited airflow.
• Compliance and manufacturing repeatability: a design that works in 10 samples may still fail in volume if assembly tolerances are not tightly managed.

Why this matters across roles

Operators care about whether the link drops during use. Engineers care about repeatable performance across revisions. Procurement teams care about total cost over a 12–36 month buying window. Finance approvers care about avoiding hidden expenses caused by returns, site visits, and redesigns. A stable RF transmitter range decision touches all of these priorities at once.

Which Technical Parameters Should You Check Before Buying?

When selecting an RF transmitter, buyers often focus on frequency band and advertised distance first. That is necessary, but not sufficient. A practical review should cover at least 6 key checks: frequency compatibility, transmit power range, modulation method, power supply stability, operating temperature, and assembly quality. Missing even one of these can weaken stable range in field deployments.

For example, a transmitter operating in sub-GHz bands may offer better penetration through walls and structures, while 2.4 GHz solutions often face denser interference from Wi-Fi, Bluetooth, and industrial devices. The right choice depends on deployment density, required payload, enclosure design, and local regulatory conditions. It is not just a frequency decision; it is a system decision.

Electrical design teams should also examine current draw during transmit bursts, tolerance to supply fluctuation, and sensitivity to board-level noise. In mixed-signal assemblies, nearby switching regulators, clock sources, and poor grounding can reduce RF transmitter stability even when the module itself passes bench tests. SCM’s value in this stage is helping teams connect component data with assembly realities.

The table below summarizes the core parameters that most engineering, sourcing, and quality teams should review before approving an RF transmitter for a new design or replacement program.

The most important takeaway is that RF transmitter selection should be tied to the final assembly. If your design will run inside a dense electronics enclosure, near motors, or inside a multilayer board with compact routing, parameter review must include PCB material behavior and SMT execution, not only the transmitter datasheet.

A short pre-approval checklist

1. Confirm the intended communication range under the actual installation environment, not only open-field conditions.
2. Review the board stack-up, antenna clearance area, and power integrity plan before component freeze.
3. Check whether the supplier can support repeatable assembly quality across prototype, pilot, and production lots.
4. Verify whether the design path aligns with required compliance documentation and quality control procedures.

How Do Application Scenarios Change RF Transmitter Selection?

The same RF transmitter may perform well in one setting and poorly in another. A warehouse tracking node, an industrial control panel, and an outdoor telemetry device each impose different constraints on signal propagation, thermal loading, service life, and enclosure losses. This is why stable range should always be evaluated by scenario instead of by specification headline.

In indoor environments, reflections from metal racks, machinery, and reinforced walls create multipath conditions. In compact equipment, PCB layout and shielding become critical because the transmitter shares space with processors, power devices, and other circuit components. In outdoor installations, moisture sealing, connector quality, and long duty cycles can become dominant reliability concerns over a 12–24 month maintenance cycle.

For project leaders and after-sales teams, the scenario review also reduces service risk. It is much easier to spend time on up-front design validation than to troubleshoot intermittent RF performance after deployment across multiple sites. SCM’s benchmarking work helps teams compare likely weak points before purchase commitments are finalized.

The following comparison can help align application type with the right RF transmitter evaluation priority.

This comparison shows why scenario mapping is not optional. An RF transmitter chosen for stable range in a compact embedded design may not be the right choice for a long-range outdoor node, even if both systems use similar RF receivers. Real stability comes from scenario fit, not generic ratings.

Common scenario-specific mistakes

Mistake 1: Assuming line-of-sight claims apply indoors

Many range estimates are based on open-space conditions. In industrial buildings, actual usable range can be much lower because of steel structures, cable trays, moving equipment, and interference sources. Teams should schedule at least 2 test stages: a bench stage and an on-site validation stage.

Mistake 2: Ignoring thermal accumulation

A transmitter can pass short tests but drift during continuous duty. If the board operates in a sealed housing for 8–12 hours, thermal analysis becomes a range-stability issue, not only a reliability issue.

Mistake 3: Treating antenna space as leftover space

A well-specified RF transmitter will still lose stable range if nearby copper pours, metal shields, batteries, or mechanical supports compromise antenna performance. Antenna clearance must be protected early in the layout process.

What Should Procurement, Quality, and Finance Teams Compare?

In B2B sourcing, the best RF transmitter is rarely the one with the lowest unit price. Buyers need a broader decision model that includes validation effort, compliance documentation, manufacturing consistency, replacement risk, and support responsiveness. A slightly higher-priced transmitter with stronger process control can reduce total ownership cost across 3 purchasing cycles.

Quality managers should ask whether the supplier’s assembly route supports repeatability. This includes SMT placement accuracy, solder profile stability, incoming material control, and traceability. Procurement and finance teams should ask a parallel question: how much internal engineering time will be needed to qualify, re-qualify, or troubleshoot this source over the next 6–18 months?

SCM is particularly relevant here because independent benchmarking reduces the information gap between the supplier promise and actual manufacturing capability. For organizations sourcing from Asian precision manufacturing hubs, this improves decision speed while lowering uncertainty around semiconductor compliance, PCB performance, and long-term reliability behavior.

The matrix below gives a practical framework for procurement, business review, and financial approval discussions.

This type of matrix helps align departments that often evaluate different risks. Engineering may prioritize link stability, procurement may focus on lead time, and finance may focus on approval thresholds. A shared comparison model prevents fragmented decisions and makes RF transmitter selection more defensible.

Five procurement checks that save time later

• Request evidence of process consistency across prototype, EVT or pilot, and production stages.
• Review how the supplier manages changes in passive components, active semiconductors, and PCB material substitutions.
• Check standard lead-time windows, such as 2–6 weeks for common builds, and identify buffers for critical parts.
• Confirm the available support for sample builds, failure analysis, and parameter clarification.
• Map the approval path for technical, quality, and financial sign-off before issuing a volume purchase order.

Why Do Compliance, PCB Design, and Thermal Management Matter So Much?

Stable range often fails for reasons outside the RF chip itself. PCB dielectric variation, poor solder consistency, thermal hotspots, and insufficient grounding can all distort RF behavior. In high-precision electronics manufacturing, these are not secondary details. They are first-order factors that determine whether an RF transmitter behaves consistently across 100 units or 100,000 units.

This is where SCM’s engineering repository and laboratory-driven perspective become useful. By translating complex material and process variables into structured reports, SCM helps engineering and sourcing teams understand where hidden risk sits: in stack-up design, in placement precision, in passive component drift, or in heat accumulation inside tightly packed assemblies.

For quality and safety managers, compliance review should cover more than end-product labels. It should also examine whether the manufacturing route supports relevant quality systems, whether the assembly target aligns with IPC-Class 3 where required, and whether documentation supports audit readiness. For RF applications used in demanding environments, long-term reliability under thermal and environmental stress deserves early attention.

A practical rule is to review three layers together: circuit design, manufacturing process, and operational environment. If one layer is weak, the range margin you expected on paper can disappear during pilot build or field use.

Three implementation priorities before final approval

1. Verify PCB material and layout discipline

For multilayer boards, dielectric consistency and impedance-aware routing matter. Even small layout changes near the RF path can influence matching and loss behavior. Teams should freeze antenna region rules and RF grounding rules before transferring to volume manufacturing.

2. Assess thermal behavior under realistic duty cycles

Continuous transmission, repeated bursts, and sealed housings create different thermal loads. A 30-minute test may not represent a 12-hour equipment cycle. Thermal review should include hotspot mapping, passive component tolerance drift, and proximity to heat-generating semiconductors.

3. Link compliance review with sourcing risk

A compliant-looking source can still create risk if documentation is incomplete, lot traceability is weak, or substitution controls are unclear. Procurement and quality teams should align document review with actual production controls before approval.

FAQ: Common Questions When Choosing an RF Transmitter for Stable Range

Teams searching for an RF transmitter often face the same questions across engineering, purchasing, and project execution. The answers below focus on practical decision points rather than generic marketing claims.

How do I choose between higher power and better receiver sensitivity?

In most cases, link stability comes from balanced system design. Raising transmit power may help, but it can also increase thermal load, current demand, and compliance complexity. Better receiver sensitivity, cleaner layout, and improved antenna matching often deliver more stable range with lower system stress. Start with the link budget, then validate in the target environment.

What operating conditions should be tested before volume purchase?

At minimum, test in 3 conditions: bench verification, actual installation environment, and an extended run condition that reflects realistic duty cycles. If the product is used in industry or outdoors, include temperature variation, enclosure effects, and interference exposure. A 2-stage approval is often too limited for stable RF transmitter selection.

Can a good RF transmitter compensate for poor PCB design?

No. A quality transmitter can only perform within the limits of the board, antenna, power integrity, and assembly consistency around it. Poor grounding, uncontrolled impedance, or noisy power rails can quickly erode expected range. This is why SCM emphasizes hardware science, material behavior, and manufacturing precision rather than part selection alone.

What should procurement ask if there are multiple supplier options?

Ask for more than a quotation. Request process information, expected lead times, support for samples, substitution control policy, and any available manufacturing quality documentation. Then compare total project impact over 6–12 months, not just the initial purchase price. The goal is stable supply and stable range, not simply a lower line item.

Why Work With SCM When Evaluating RF Transmitter Options?

RF transmitter decisions become more reliable when teams can access independent technical insight instead of relying only on fragmented supplier claims. SCM supports this need by connecting semiconductor behavior, PCB fabrication realities, SMT precision metrics, thermal packaging insight, and component reliability analysis into one evidence-based view. That is valuable for engineers, sourcing teams, and business approvers alike.

If your team is reviewing transmitter range stability, SCM can help frame the right evaluation path: which parameters to confirm, which assembly risks to screen, which compliance questions to raise, and which trade-offs matter most between performance, cost, and durability. This is especially useful when procurement must compare multiple Asian manufacturing sources under time pressure.

You can consult SCM for support around parameter confirmation, RF transmitter selection logic, PCB and SMT-related risk review, thermal and reliability concerns, standard compliance interpretation, sample-stage evaluation priorities, and sourcing discussions tied to delivery windows or quotation planning. These are the areas where technical uncertainty often slows projects or creates avoidable downstream cost.

If you are preparing a new RF-enabled product, replacing an unstable transmitter design, or validating a supplier before a 2–6 week purchasing cycle, contact SCM with your target range, operating environment, board constraints, compliance requirements, and sample or mass-production timeline. A structured review at the beginning usually saves far more time than a corrective action plan after deployment.
