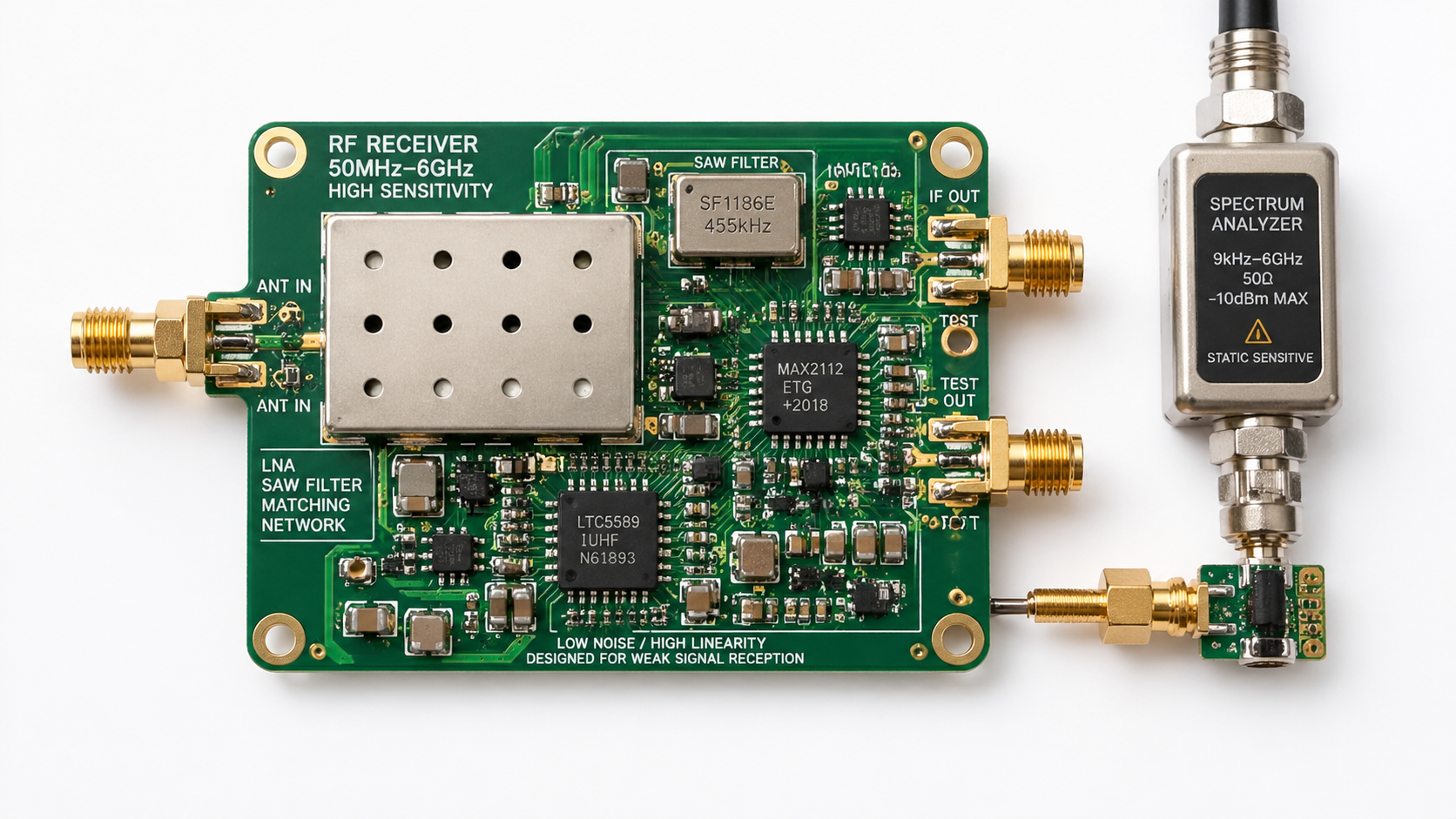

RF Receiver Sensitivity: What Matters Most

RF receiver sensitivity matters most when weak-signal reliability has to survive real operating conditions, not just look good on a datasheet. For engineers, evaluators, procurement teams, and quality stakeholders, the key point is simple: sensitivity is never determined by one specification alone. It is the result of noise figure, bandwidth, modulation target, front-end design, PCB layout, shielding, thermal behavior, power integrity, and manufacturing consistency working together. If you are comparing an RF receiver, RF transmitter, or full transceiver platform, the best decision comes from understanding which parameters actually move system performance and which “good-looking” specs can be misleading in deployment.

This guide explains what matters most in RF receiver sensitivity, how to evaluate it in practical terms, and why component selection, SMT assembly quality, thermal packaging, and semiconductor compliance can materially affect final field performance.

What RF receiver sensitivity actually tells you

RF receiver sensitivity is the minimum input signal level at which a receiver can still recover usable information at a defined performance threshold. That threshold is usually expressed through BER, PER, SINAD, or another modulation-specific quality criterion. In practical terms, better sensitivity means the receiver can detect weaker signals, extending range, improving link stability, and increasing reliability in noisy or obstructed environments.

However, sensitivity only becomes meaningful when its test conditions are clear. A sensitivity figure without bandwidth, data rate, modulation format, error-rate criterion, test temperature, and frequency context is incomplete. For example, a receiver measured at narrow bandwidth in a controlled lab may appear excellent, but that result may not translate to a wideband, thermally stressed, interference-heavy production environment.

For most technical and commercial readers, the real takeaway is this: receiver sensitivity is a system-level indicator, not a standalone chip number.

Which parameters matter most when evaluating sensitivity

If the goal is to understand what drives RF receiver sensitivity, several factors matter far more than generic marketing claims.

1. Noise figure

Noise figure is one of the most important inputs. A lower noise figure means the receiver adds less internal noise to the incoming weak signal. This directly improves the ability to distinguish signal from noise at the front end. In low-power wireless applications, IoT modules, industrial RF links, and communication subsystems, front-end noise performance often defines real sensitivity limits.

2. Bandwidth

Wider bandwidth generally admits more noise, which can reduce sensitivity. Narrower bandwidth can improve weak-signal detection, but only if it still supports the intended data rate and modulation. This is why sensitivity comparisons across different receivers are often misleading unless bandwidth is normalized.

3. Required signal quality threshold

Every receiver sensitivity number depends on what “usable” means. In one design, sensitivity may be defined at 10% PER. In another, it may be tied to a stricter BER requirement. Procurement and evaluation teams should always ask what pass/fail threshold produced the published number.

4. Modulation and data rate

Higher-order modulation schemes and faster data rates usually demand stronger received signals. A receiver that performs well under low-rate FSK may not show the same sensitivity under OFDM or higher-throughput modes. Sensitivity must be assessed in the exact communication mode intended for deployment.

5. Front-end linearity and blocking performance

A receiver can show strong lab sensitivity yet fail under nearby interferers. In real deployments, adjacent-channel blockers, harmonics, and in-band emissions from neighboring devices can degrade effective sensitivity. This is especially important in dense industrial, automotive, telecom, and mixed-wireless environments.

6. Oscillator stability and phase noise

LO phase noise and frequency stability affect demodulation quality, especially in narrowband or high-performance applications. Poor spectral purity can effectively reduce usable sensitivity even if nominal front-end gain and noise figure appear acceptable.

Why datasheet sensitivity is often not the same as field performance

Many teams make the mistake of treating the published sensitivity number as the final truth. In practice, field performance is shaped by implementation quality.

Three products using the same RF semiconductor can produce very different results because of:

• PCB stack-up and dielectric consistency
• Impedance control accuracy
• Grounding strategy and return path design
• Shielding effectiveness
• SMT placement precision
• Solder joint quality on RF paths
• Power supply ripple and decoupling performance
• Thermal drift in active components

This is where technical benchmarking becomes valuable. Independent assessment of PCB compliance, SMT compliance, and circuit board assembly quality can reveal whether a receiver design can actually preserve weak-signal performance across production lots and operating environments.

How PCB and circuit board assembly decisions affect RF receiver sensitivity

For many readers in engineering, quality, and sourcing roles, this is the most actionable part of the discussion. RF receiver sensitivity can be materially degraded by board-level design and manufacturing choices that seem secondary during early component comparison.

PCB material and dielectric control

At RF frequencies, dielectric constant variation changes impedance behavior, insertion loss, and matching accuracy. If the PCB fabrication process cannot maintain tight dielectric and trace tolerances, the RF front end may suffer mismatch losses that reduce delivered signal power before it ever reaches the receiver chain.

Transmission line integrity

Controlled impedance is essential. If the antenna feed, matching network, filter path, or LNA input trace is poorly controlled, the resulting reflections and losses can directly weaken sensitivity. Even small errors become more consequential as frequency rises.

Grounding and shielding

Weak-signal reception depends on stable reference planes and good isolation from digital noise, switching regulators, and high-speed interfaces. Poor partitioning between RF and digital domains can elevate the local noise floor and erase expected sensitivity gains.

SMT placement and solder consistency

SMT compliance matters because RF matching networks and filter sections are highly sensitive to component placement offsets, tombstoning, solder volume variation, and pad geometry inconsistency. In high-frequency circuits, these physical deviations alter parasitics and can shift tuned behavior enough to affect receiver performance.

Capacitors and passive component quality

High-performance capacitors are not just a BOM detail. Their ESR, temperature stability, tolerance, and aging behavior influence power integrity, filtering, decoupling, and matching network consistency. Passive component drift can raise noise, destabilize bias conditions, or detune RF networks over time.

Why thermal behavior and power integrity cannot be ignored

Receiver sensitivity is often discussed as an RF-only issue, but thermal management and power quality are major contributors to real-world stability.

Temperature shifts can change semiconductor gain, noise figure, oscillator accuracy, and passive component values. In a tightly optimized RF receiver, that can mean measurable sensitivity degradation across the operating range. For this reason, teams evaluating long-term performance should look beyond room-temperature validation and ask how the design behaves under thermal cycling, sustained load, and enclosure-level heat buildup.

Power integrity is equally important. Excessive ripple, inadequate decoupling, regulator noise, and coupling from nearby switching circuits can lift the effective noise floor. In sensitive receivers, poor power design can undo the benefit of a premium front-end architecture.

For buyers and compliance teams, the practical implication is clear: semiconductor compliance alone is not enough. Thermal packaging quality, board-level decoupling strategy, and manufacturing control all influence whether a receiver meets expected performance over life.

How different stakeholders should judge RF receiver sensitivity

Not every reader needs the same evaluation framework. The most useful way to assess receiver sensitivity depends on your role.

For R&D engineers and technical evaluators

• Check sensitivity with full test conditions, not just the headline value
• Review noise figure, blocking, selectivity, and phase noise together
• Validate across temperature, voltage, and production variation
• Inspect PCB layout, matching networks, and grounding implementation
• Compare conducted and radiated performance separately

For procurement and commercial evaluators

• Ask whether measured sensitivity is repeatable at production scale
• Review supplier consistency in PCB fabrication and SMT assembly
• Assess whether lower-cost alternatives introduce performance drift or yield loss
• Look for independent benchmarking and compliance documentation
• Evaluate total cost of failure, not just unit purchase price

For quality, safety, and compliance teams

• Confirm test methodology and acceptance thresholds
• Review IPC-Class 3, ISO 9001, and relevant RF/EMC process controls
• Verify component traceability and long-term reliability data
• Examine thermal stress, environmental stress, and aging performance

For project managers and financial approvers

• Focus on sensitivity as a risk and reliability metric, not just a technical spec
• Consider deployment environment and service cost implications
• Prioritize solutions with measurable production consistency
• Understand that weak-signal failure can increase returns, support load, and brand risk

What to ask before selecting an RF receiver or transceiver platform

If you need a practical shortlist, these are the questions that usually matter most:

• What exact test conditions define the stated receiver sensitivity?
• How does sensitivity change with bandwidth, modulation, and data rate?
• What is the receiver noise figure and front-end architecture?
• How does the design perform under adjacent-channel interference?
• Has the product been validated across temperature and voltage extremes?
• What PCB materials, impedance controls, and shielding methods are required?
• How tightly controlled are SMT assembly and passive component tolerances?
• Is there independent data on reliability, thermal stress, and manufacturing repeatability?
• Can the supplier support compliance, traceability, and lot-to-lot consistency?

These questions help separate theoretically strong RF solutions from platforms that can hold sensitivity in real manufacturing and deployment conditions.

The most important conclusion: sensitivity is a chain, not a number

The most important factor in RF receiver sensitivity is not a single parameter but the integrity of the full signal chain. Noise figure, bandwidth, modulation target, PCB design, passive component quality, SMT precision, thermal control, and compliance discipline all contribute to whether weak signals remain usable in the real world.

For readers making technical, sourcing, quality, or investment decisions, the safest approach is to treat receiver sensitivity as a measurable outcome of design plus manufacturing execution. A strong datasheet value is useful, but a reliable RF product depends on whether that value survives board implementation, production variation, environmental stress, and long-term operation.

In short, what matters most is repeatable weak-signal performance under real conditions. That is the standard that should guide RF receiver, RF transmitter, and transceiver evaluation.
