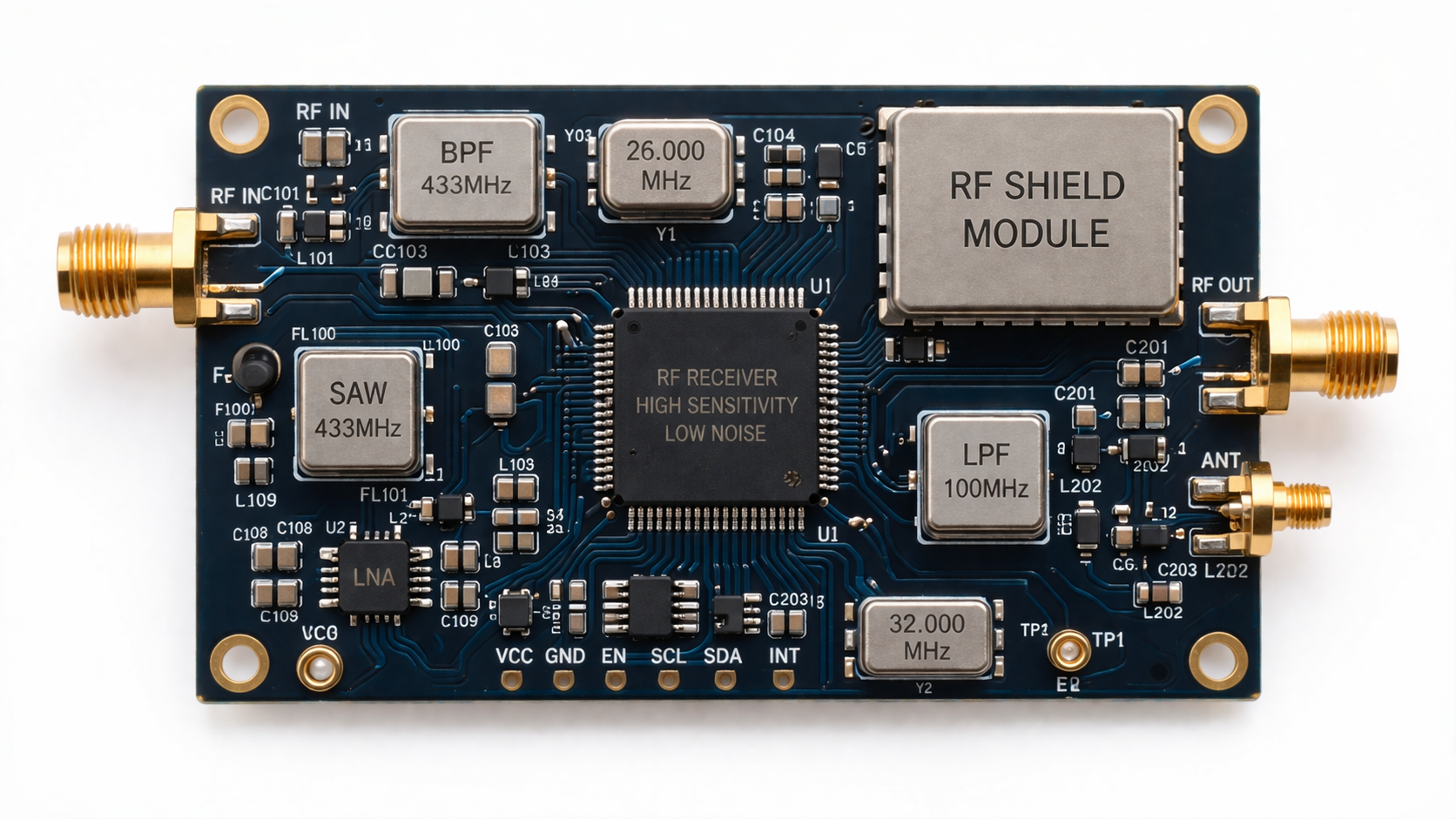

How to Read RF Receiver Specs Before You Buy

Before you buy an RF receiver, do not start with frequency alone. The specs that usually determine whether a design will work in the real world are sensitivity, selectivity, blocking performance, dynamic range, modulation compatibility, power behavior, and environmental reliability. For engineers, buyers, and evaluators, the goal is not to find the receiver with the “best” numbers on paper, but the one whose specifications match the signal environment, PCB design limits, compliance requirements, and long-term operating conditions of the actual product.

That is where many procurement and design mistakes happen. A receiver may look cost-effective, yet fail in noisy environments, drift under heat, or create integration issues with nearby RF transmitter stages, power circuits, and supporting electronic parts. This guide explains how to read RF receiver specs before you buy, what each number really means, and how to compare RF receiver, RF transmitter, and RF transceiver options with less risk.

What is the real buying question behind RF receiver specs?

Most readers searching for this topic are not looking for textbook definitions. They want to answer a practical question: Will this RF receiver work reliably in my application without causing redesign, field failures, or wasted spend?

That question matters to different stakeholders in different ways:

• Design and evaluation engineers need to know whether the receiver can detect the intended signal in the presence of noise, interference, and board-level constraints.
• Procurement teams need a defensible basis for supplier comparison beyond unit price.
• Quality and safety teams need confidence in compliance, stability, and environmental performance.
• Project and business stakeholders need to avoid delays, returns, and unexpected qualification costs.

So when reading a datasheet, the right approach is to ask three things:

1. Can the receiver hear the signal I care about?
2. Can it reject the signals I do not want?
3. Can it keep doing both under my actual electrical, thermal, and manufacturing conditions?

Sensitivity: can the receiver detect weak signals in real operating conditions?

Sensitivity is often the first RF receiver spec buyers compare, and for good reason. It tells you the minimum input signal level the receiver can detect while still meeting a stated performance threshold, such as bit error rate, packet error rate, SINAD, or signal-to-noise ratio.

In simple terms, lower sensitivity values in dBm usually mean better weak-signal reception. For example, a receiver with -110 dBm sensitivity can detect weaker signals than one rated at -102 dBm, assuming the measurement conditions are comparable.

But this is where mistakes happen: sensitivity numbers are only meaningful if you also read the test conditions.

Check these details carefully:

• Modulation type: FSK, LoRa, OOK, ASK, QPSK, and others can produce very different results.
• Data rate: higher data rates often reduce sensitivity.
• Bandwidth: wider bandwidth generally raises the noise floor and worsens sensitivity.
• Error criterion: BER, PER, or SINAD thresholds change the quoted number.
• Supply voltage and temperature: some parts look strong at room temperature but degrade at system extremes.

For technical evaluation, sensitivity should never be viewed in isolation. A strong sensitivity number on a test bench does not guarantee robust field performance if the receiver sits on a noisy circuit board assembly, near switching regulators, high-speed clocks, or a nearby RF transmitter chain.

Practical buying tip: if two devices show different sensitivity values, normalize the comparison by checking whether they were tested under the same modulation, bandwidth, and error-rate conditions. Otherwise, you are comparing marketing, not performance.

Selectivity and blocking: can the receiver survive interference?

If sensitivity tells you how well the part hears weak signals, selectivity tells you how well it ignores unwanted nearby signals. This is one of the most important specs for crowded RF environments, especially in industrial, consumer wireless, automotive-adjacent, and dense IoT deployments.

Selectivity usually describes the receiver’s ability to accept the desired signal while rejecting signals at nearby frequencies. A receiver may look excellent in a quiet lab but fail in a real installation where adjacent channels, harmonics, or spurious emissions are present.

Related datasheet terms may include:

• Adjacent channel rejection
• Alternate channel rejection
• Blocking performance
• Spurious response rejection
• Intermodulation immunity

These specs matter because a receiver with poor selectivity can be desensitized by nearby transmitters even if its sensitivity number looks excellent. In a shared spectrum environment, that can cause dropped packets, false triggering, unstable links, or complete communication failure.

For buyers and project leads: poor interference tolerance often creates hidden costs later, including shielding changes, PCB layout revisions, filter additions, antenna redesign, and repeated compliance testing.

What to ask suppliers:

• What are the adjacent channel rejection values under the intended modulation?
• What blocking levels were tested, and at what offset frequencies?
• Is external filtering required to achieve quoted performance?
• Are there reference layouts showing acceptable coexistence with other circuit components?

Dynamic range and linearity: will strong signals overload the front end?

A useful RF receiver must handle both weak and strong signals. That is where dynamic range and linearity come in.

Dynamic range is the span between the weakest usable signal and the strongest signal the receiver can tolerate without unacceptable distortion or overload. In mixed-signal environments, especially where multiple radios or power electronics share the board, this can be more important than a headline sensitivity number.

Key specs to review include:

• Input compression point
• Third-order intercept behavior, if provided
• Maximum input level
• RSSI accuracy and usable range
• AGC behavior if automatic gain control is used

If the receiver front end is easily overloaded, strong nearby signals can raise the effective noise floor, distort wanted signals, or cause intermittent failures that are difficult to debug. This often appears in final systems as “random” communication instability, when the actual cause is front-end saturation or poor linearity under real deployment conditions.

For system integrators, this is especially relevant when evaluating an RF transceiver instead of a standalone RF receiver, because transmit and receive functions may interact through board layout, grounding, shielding, and thermal behavior.

Bandwidth, modulation, and data rate: are you matching the actual communication method?

One of the most common evaluation errors is buying a receiver based on frequency compatibility while underestimating modulation support, channel bandwidth, and data rate limits.

A receiver may operate in the correct band yet still be the wrong choice if it does not support:

• The required modulation scheme
• The needed symbol or bit rate
• The required receive bandwidth
• The timing behavior needed for the protocol stack
• The link budget assumptions of the target product

For example, a narrowband receiver can improve sensitivity, but it may not support a higher-rate protocol. A wider-band design may support the data rate but give up weak-signal performance. There is always a system tradeoff.

This is why technical teams should assess the receiver as part of the full signal chain, including antenna, filters, matching network, PCB stack-up, and nearby semiconductor devices. In many products, the best purchasing decision is the part that reduces overall system compromise, not the one with the single strongest isolated spec.

Noise figure, oscillator accuracy, and frequency stability: the hidden specs that affect field performance

Some of the most important RF receiver behaviors are driven by specs that buyers often skip because they seem too detailed. That can be expensive.

Noise figure affects how much internal noise the receiver adds to the incoming signal. Lower noise figure generally supports better weak-signal performance, especially in front-end-sensitive designs.

Oscillator accuracy and frequency stability matter because real systems do not operate in a perfect lab. Temperature shifts, aging, vibration, and supply variation can all move the receive frequency enough to degrade demodulation or reduce effective sensitivity.

Pay close attention to:

• Initial frequency tolerance
• Temperature drift
• Aging characteristics
• Phase noise, where relevant
• Clock source requirements and external crystal tolerances

These values are especially important in narrowband systems, high-reliability industrial applications, and products expected to remain stable over long service life. If your environment includes thermal cycling or harsh operating conditions, frequency stability is not a secondary spec. It is a reliability spec.

Power consumption and thermal behavior: does the receiver fit your power budget and reliability target?

For many teams, low power is not just a battery-life issue. It also affects enclosure design, regulator loading, thermal density, and long-term component reliability.

Review power-related specs in multiple modes:

• Receive current
• Standby or sleep current
• Wake-up time
• Voltage range
• Current variation across temperature

Then ask the more important system question: What happens to performance when the part gets warm?

Many datasheets provide only limited detail on thermal effects, but thermal behavior can influence:

• Sensitivity drift
• Frequency stability
• Internal gain consistency
• Long-term reliability of solder joints and package integrity

For products built in dense circuit board assembly environments, especially with nearby processors, PMICs, or RF transmitter sections, thermal coupling can materially affect receiver performance. This is where independent benchmarking and validation data become more valuable than headline component marketing claims.

Compliance, packaging, and manufacturing fit: can you qualify and build it without surprises?

An RF receiver is not purchased as an isolated chip. It becomes part of a manufacturable, certifiable product. That means the buying decision should also include packaging, compliance, and assembly-level fit.

Areas to verify include:

• RoHS, REACH, and regional material compliance
• MSL rating and storage handling requirements
• Package type and assembly compatibility
• Recommended land pattern and reflow profile
• ESD robustness
• Availability of PPAP, CoC, or traceability documentation where needed

For EMS procurement and quality teams, these factors can influence yield, audit readiness, and total qualification effort as much as electrical performance does. A technically strong semiconductor can still be the wrong buying choice if it introduces sourcing volatility, assembly risk, or compliance gaps.

If the receiver is part of a safety-critical or industrially qualified system, also review supplier evidence for long-term reliability testing, failure analysis support, lot consistency, and change notification practices.

RF receiver vs RF transmitter vs RF transceiver: what should you compare before buying?

Many buyers search these categories together because the product architecture may still be open. In that case, the right choice depends on the system role.

• RF receiver: best when the device only needs to receive signals and can be optimized for listening performance, power profile, or cost.
• RF transmitter: used where only outbound signaling matters.
• RF transceiver: combines transmit and receive functions, often simplifying integration but adding coexistence, layout, and thermal considerations.

When comparing them, look beyond the functional label and ask:

• Does a transceiver add unnecessary complexity or certification burden?
• Does a standalone receiver offer better sensitivity or selectivity for the use case?
• Will board-level isolation between TX and RX paths be difficult?
• Do shared matching networks or package limitations create performance tradeoffs?

For procurement and finance stakeholders, the lowest BOM line item may not be the lowest total cost option. If a transceiver reduces board area and assembly complexity, it may save money. If a dedicated receiver avoids redesign and improves field reliability, it may deliver better lifecycle value.

A practical datasheet checklist before you approve a part

Before final selection, use a structured review process. This is often the fastest way to align engineering, sourcing, and quality teams.

RF receiver pre-buy checklist:

1. Confirm operating frequency and regulatory fit for the target market.
2. Verify sensitivity under the exact intended modulation, bandwidth, and data rate.
3. Review selectivity, adjacent channel rejection, blocking, and spurious response performance.
4. Check dynamic range and overload tolerance in realistic interference conditions.
5. Validate oscillator tolerance and stability across the full operating temperature range.
6. Assess receive current, standby current, wake-up behavior, and power supply limits.
7. Confirm package compatibility with your SMT process and PCB design rules.
8. Review compliance documents, reliability data, and traceability support.
9. Ask whether quoted performance requires external filters, shielding, or a specific reference layout.
10. Compare lifecycle risk: lead times, second-source options, PCN policy, and supplier support.

If possible, do not rely on the datasheet alone. Validate with reference designs, evaluation boards, independent test data, and supplier response quality. In RF, integration details often decide the outcome.

Final takeaway: read RF receiver specs as system risk indicators, not just feature lists

The best way to read RF receiver specs before you buy is to treat the datasheet as a decision tool for system performance, manufacturing fit, and lifecycle risk. Sensitivity matters, but it is only one piece. Selectivity, blocking, linearity, bandwidth fit, oscillator stability, power behavior, and compliance readiness often determine whether the part succeeds in a real product.

For engineers, this means evaluating the receiver in the context of the full signal path and circuit board assembly. For procurement, it means comparing total qualification and integration risk rather than unit price alone. For quality and project stakeholders, it means prioritizing parts backed by credible reliability, manufacturing, and documentation support.

If you make those checks before purchase, you are far more likely to choose an RF receiver, RF transmitter, or RF transceiver that performs as expected, fits your semiconductor and electronic parts strategy, and avoids expensive surprises later in development or production.
