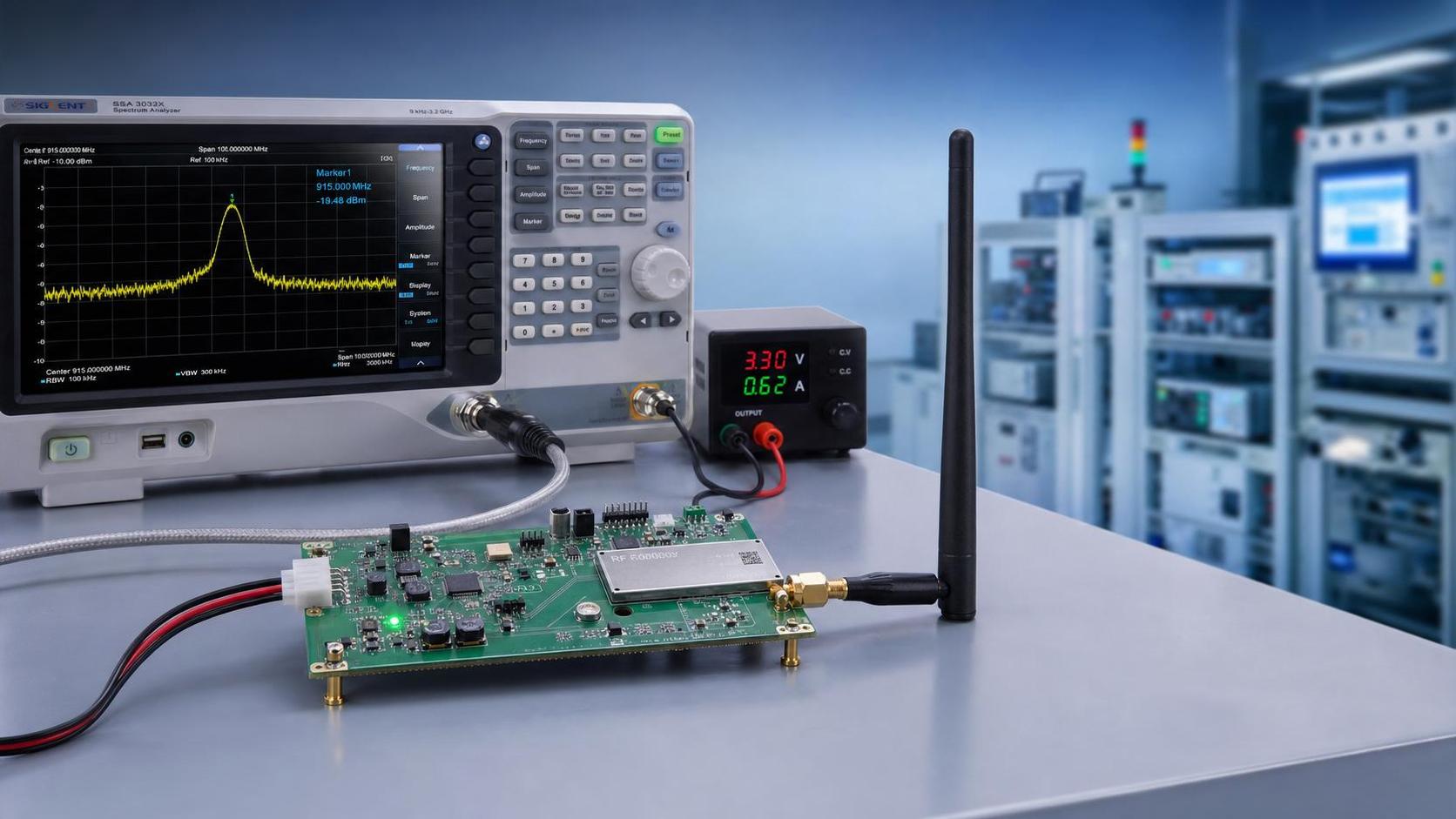

When an RF transmitter module delivers less range than expected, the cause is rarely isolated.

A weak antenna match, unstable power, noisy layout, or nearby obstacles can all reduce performance.

In real deployments, these issues often stack together and make diagnosis harder than expected.

This guide explains why an RF transmitter module loses range and how to fix it with practical steps.

The goal is simple: restore reliable transmission without guessing, overcomplicating the design, or replacing parts too early.

Start with the Expected Range

Before changing hardware, confirm whether the expected range is realistic for the application.

Many RF transmitter module datasheets quote open-field distance under ideal antenna orientation and low interference.

Indoor walls, metal racks, motors, or human movement can reduce that number very quickly.

A range issue may be real, but sometimes the benchmark itself was too optimistic.

That also means testing should begin in a controlled environment, then move into the actual installation area.

Quick baseline checks

• Verify the rated frequency band and legal transmit power.
• Measure range in line-of-sight conditions first.
• Compare results with the receiver sensitivity specification.
• Check whether the module uses the intended modulation settings.
• Document packet loss, not just maximum distance.

Antenna Problems Are the Most Common Cause

In many field failures, the antenna is the first place to look.

An RF transmitter module can have good output power and still perform poorly with the wrong antenna.

Mismatch, bad placement, incorrect length, or damaged connectors can waste signal energy.

Small changes in grounding and enclosure position can also shift the effective tuning point.

Typical antenna-related faults

• Using a 433 MHz antenna on a 470 MHz RF transmitter module.
• Antenna trace placed too close to ground fill or shielding metal.
• Coax cable losses higher than expected.
• Loose SMA or u.FL connector contact.
• Antenna installed inside a metal enclosure without a proper external path.

Practical fixes

Match the antenna exactly to the operating band of the RF transmitter module.

Keep feed lines short and use low-loss cable where distance cannot be avoided.

Move the antenna away from batteries, displays, motors, and grounded metal surfaces.

If possible, verify return loss or VSWR with basic RF test equipment.

Even a modest antenna improvement can produce a larger gain than increasing transmit power.

Power Supply Weakness Can Cut RF Range Fast

An RF transmitter module depends on a clean and stable power rail during transmission bursts.

If the supply droops under load, output power can fall before the fault becomes obvious.

This is common in battery products, long cable runs, and compact boards with limited decoupling.

The module may still work, but the usable distance becomes inconsistent.

What to check

1. Measure supply voltage during active transmit cycles, not only at idle.
2. Check regulator headroom and current capability.
3. Inspect decoupling capacitor placement near the RF transmitter module power pins.
4. Look for digital noise coupling from switching regulators or nearby processors.

A low-noise LDO, better bypassing, or a stronger battery path often improves range immediately.

From a reliability perspective, stable power is usually more valuable than pushing the module harder.

PCB Layout and Grounding Matter More Than Many Expect

Layout quality has a direct effect on RF transmitter module range, especially in compact products.

Poor grounding, broken return paths, and noisy digital traces near the RF section can degrade efficiency.

This is where engineering discipline matters, not just component selection.

Common layout mistakes

• RF trace routed across split ground planes.
• Clock lines passing close to the antenna feed.
• Ground vias too sparse around the RF path.
• Matching network footprints copied without tuning validation.
• Module placed next to high-current switching circuits.

In practice, keep the RF zone quiet, compact, and well referenced to ground.

Follow the module vendor layout guide, but verify it against your own board stack-up.

SCM research across PCB and SMT quality shows that small assembly deviations can also affect RF repeatability.

Interference Is Often a Real-World Limiter

If the RF transmitter module works in the lab but fails on site, interference is a strong suspect.

Shared ISM bands are crowded with Wi-Fi, Bluetooth, remote controls, sensors, and industrial equipment.

The issue may not be weak transmit power at all.

It may be that the receiver cannot separate the wanted signal from the noise floor.

Signs of interference

• Range changes by time of day or machine activity.
• Communication improves when the product is moved only a few meters.
• Packet retries rise before complete dropouts happen.
• Multiple nodes fail in the same physical zone.

What helps

Change channel settings if the RF transmitter module supports it.

Increase spacing from other radios and noisy power electronics.

Use filtering, shielding, or protocol settings with stronger resilience.

In harsh environments, a better modulation scheme may solve more than a hardware swap.

Environment and Installation Can Override Good Design

A properly designed RF transmitter module can still underperform because of installation conditions.

Concrete walls, water tanks, steel cabinets, and moving vehicles all affect propagation.

At lower frequencies, penetration improves, but large metal surfaces still create serious reflections and dead spots.

This is why field testing should mirror the final mounting height, angle, and enclosure state.

Installation fixes that often work

• Raise the antenna above nearby obstructions.
• Maintain the same antenna polarization at both ends.
• Move the module away from large grounded panels.
• Test with the final enclosure fully assembled.

Configuration Errors Can Quietly Limit Performance

Sometimes the hardware is fine, but the RF transmitter module is configured conservatively or incorrectly.

Transmit power, data rate, packet length, duty cycle, and coding settings all affect range.

A faster data rate often reduces link budget, even when throughput looks better on paper.

Configuration review list

1. Confirm legal output power is set as intended.
2. Reduce data rate if long-distance reliability is the priority.
3. Enable available forward error correction features.
4. Review sleep and wake timing that may clip transmit events.

More range usually comes from a balanced link budget, not one aggressive parameter change.

A Practical Troubleshooting Sequence

A structured process prevents wasted time and avoids replacing a healthy RF transmitter module.

Use the same sequence each time so results stay comparable.

1. Test the RF transmitter module in open space with a known-good antenna.
2. Measure supply voltage during transmit bursts.
3. Inspect connectors, solder joints, and antenna routing.
4. Review firmware settings affecting power and data rate.
5. Compare performance in the target environment at different times.
6. Only then consider component replacement or redesign.

When Deeper Engineering Review Is Worth It

If range remains unstable after basic fixes, the problem may sit deeper in materials, assembly, or compliance margins.

This is especially true for high-volume products and demanding industrial installations.

Independent benchmarking can reveal whether PCB dielectric variation, SMT placement tolerance, or component drift affects the RF path.

That approach aligns with how SiliconCore Metrics evaluates hardware performance across the semiconductor and EMS supply chain.

For teams managing reliability risk, measured evidence is more useful than assumptions about module quality.

Final Takeaway

Most RF transmitter module range problems come from a few repeat causes.

Antenna mismatch, weak power delivery, layout noise, interference, and poor installation lead the list.

The good news is that these issues are usually measurable and fixable.

Start with the antenna and power rail, then move through layout, settings, and environment.

A disciplined troubleshooting flow will improve RF transmitter module range faster than trial-and-error changes.
