Comparing thermal gap fillers by thermal conductivity alone can obscure the performance differences that matter in an actual assembly. Thermal resistance data offers a more application-relevant basis—but only when bond-line thickness, compression, temperature, and test methods are comparable. Reliable gap filler intelligence starts with separating bulk material properties from interface effects and measurement conditions.

The practical question is not which material carries the highest conductivity rating. It is which material keeps the temperature rise across your interface within budget, at the available assembly force, across manufacturing tolerances and operating life. That requires reading beyond the headline value.

Start with the resistance your assembly can tolerate

Before comparing supplier curves, establish the thermal budget for the gap filler itself. For a defined heat flow through the interface, thermal resistance is:

R = ΔT / Q

Here, R is thermal resistance in K/W, ΔT is the temperature difference across the defined interface, and Q is the heat passing through it. A temperature difference expressed in degrees Celsius gives the same numerical resistance. Do not automatically substitute total device power for Q: some heat may leave through the board, enclosure, or other parallel paths.

Allocate the allowable temperature rise across the complete thermal path, including package, gap filler, heat spreader, and heat sink. The remaining allowance sets the gap filler’s resistance target. Without that allocation, a shortlist can favor a material that tests well but does not solve the actual thermal constraint.

Also define the mechanical envelope early: minimum and maximum gap, allowable component load, board deflection, and available contact area. These are selection inputs, not checks to postpone until after material approval.

Check whether the reported numbers mean the same thing

Supplier literature may report thermal resistance in K/W, area-normalized resistance in cm²·K/W, or thermal impedance using similar units. Terminology is not always consistent. Read the units and measurement definition before interpreting the label.

For a uniform, predominantly one-dimensional heat path, area-normalized resistance is:

R″ = R × A

Use a consistent unit system. If R″ is expressed in m²·K/W, dividing it by area in m² gives K/W. Values expressed in cm²·K/W require the corresponding area units or a conversion. A comparison spreadsheet should make those conversions explicit.

Area normalization helps compare specimens, but it does not eliminate geometry effects. A small semiconductor package beneath a larger heat spreader introduces spreading resistance and nonuniform heat flux. The simple area relationship is useful for screening; it is not a replacement for an assembly model or validation test.

Confirm where the temperature difference was measured and which fixture contributions were removed. A material-only result, an interface-inclusive result, and a package-to-cold-plate measurement describe different boundaries and should not share one ranking column.

Separate bulk conduction from contact resistance

A useful first-order description of the gap-filler interface is:

R″total ≈ t / k + R″contact,1 + R″contact,2

In this expression, t is installed bond-line thickness and k is through-plane thermal conductivity. With thickness in meters and conductivity in W/(m·K), each term has units of m²·K/W. The contact terms describe the two mating interfaces.

This explains why a higher-conductivity filler can perform worse in an assembly. A relatively stiff material may leave poorer contact at the available pressure, while a softer alternative conforms more effectively. Conversely, across a large gap, bulk conduction can become the stronger constraint. Neither softness nor conductivity alone determines the result.

Resistance measurements across several thicknesses can help distinguish these contributions. Under sufficiently consistent conditions, the slope relates to effective conductivity and the intercept reflects combined contact resistance. For compliant fillers, however, changing thickness or pressure can change contact and material structure. Treat the fit as a condition-dependent model, not an intrinsic constant.

Make the test conditions visible before ranking materials

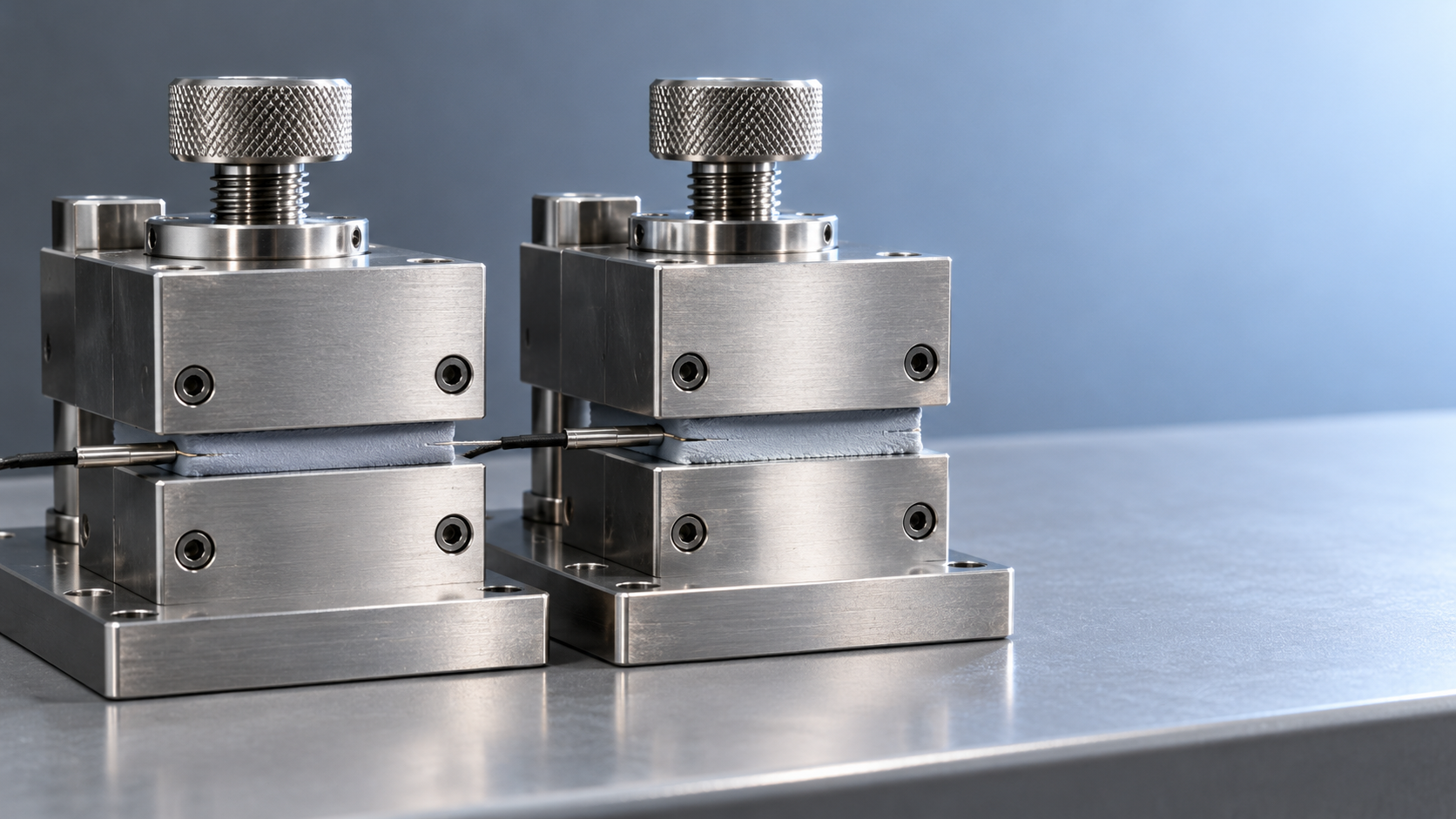

ASTM D5470 is a relevant reference for steady-state thermal transmission measurements of thermally conductive electrical insulation materials and is frequently cited in thermal interface material testing. A shared method reference improves traceability, but it does not prove that two datasets are interchangeable. Request the actual test configuration and any departures from the stated method.

When datasets lack these details, mark them as screening evidence rather than qualification evidence. Missing conditions are not proof of poor material quality, but they limit the decisions the data can support.

Compare at the mechanical condition the product will actually see

Equal compression percentage does not mean equal pressure. Two pads compressed by the same fraction of their original thickness can impose very different loads on a package or PCB. Likewise, equal pressure may produce different final thicknesses. Record both rather than choosing whichever makes the thermal result look stronger.

For an assembly controlled by hard stops, the gap is largely displacement-controlled. Evaluate resistance and reaction force at the resulting thickness. For a spring-loaded assembly, force may be the more useful starting condition, with installed thickness determined by the material response. Actual fixtures can combine both behaviors.

Build the comparison around tolerance corners. The largest gap may create the longest conduction path and weakest contact. The smallest gap may create the highest component load. A material must pass both constraints; the best nominal thermal result is not enough.

Dispensable gap fillers need additional controls. Dispense volume, wetting, voids, cure conditions, and assembly timing can change the installed interface. A pad’s pressure curve and a cured compound’s resistance curve should not be treated as directly equivalent without matching the relevant assembly conditions.

Look for a stable operating window, not one winning point

Request resistance curves across the expected thickness, pressure, and temperature window. Avoid extrapolating beyond tested conditions when material deformation or contact behavior may change. A candidate that performs consistently across the window may be easier to qualify than one with a lower minimum resistance but a steep sensitivity to assembly variation.

Then ask whether that window survives aging. Depending on formulation and application, relevant risks include stress relaxation, compression set, pump-out, cracking, separation, or fluid migration. Not every mechanism applies to every filler. Select exposures from the actual environment: thermal cycling, vibration, humidity, sustained heat, or repeated service access.

Retest thermal resistance after conditioning under a documented mechanical state. Reapplying a fresh load before measurement may mask contact loss in an assembly that experiences declining preload. Record thickness, force, and visible condition alongside resistance so that a change has an interpretable cause.

Thermal performance also does not establish electrical suitability. Dielectric strength, insulation thickness, flammability, contamination compatibility, and rework requirements need separate evidence where relevant. ISO 9001 certification concerns a quality management system; it does not validate a particular thermal resistance claim. IPC Class 3 requirements likewise do not substitute for material-specific thermal qualification.

Turn the shortlist into a defensible selection

Use supplier data to eliminate candidates that cannot meet the thermal and mechanical envelope. Test the remaining materials in a common fixture with representative surfaces, then validate finalists in the assembly. Keep heat input, sensor placement, ambient conditions, and clamping procedure controlled. Document any differences between the fixture and production hardware.

The final comparison should distinguish measured results from calculated estimates and supplier declarations. Where differences are comparable to reported uncertainty or sample variation, do not claim a decisive thermal winner. Manufacturing consistency, dispensing or placement control, reworkability, and supply continuity may then determine the practical choice.

This evidence-first approach fits SiliconCore Metrics’ role as an independent engineering repository connecting semiconductor and EMS supply-chain information with technical evaluation. Useful gap filler intelligence preserves test conditions and traceability rather than reducing every material to a conductivity ranking. Comparable reporting also helps engineering and procurement teams discuss the same evidence across manufacturing regions.

Before release, retain the exact material construction, thickness tolerance, test report revision, and acceptance conditions in the qualification record. Ask how formulation or manufacturing changes will be communicated. Select the filler that meets the resistance budget across the permitted gap and load range—and require new evidence when a proposed substitution changes those conditions.
