Heat Dissipation Mistakes That Raise Failure Rates

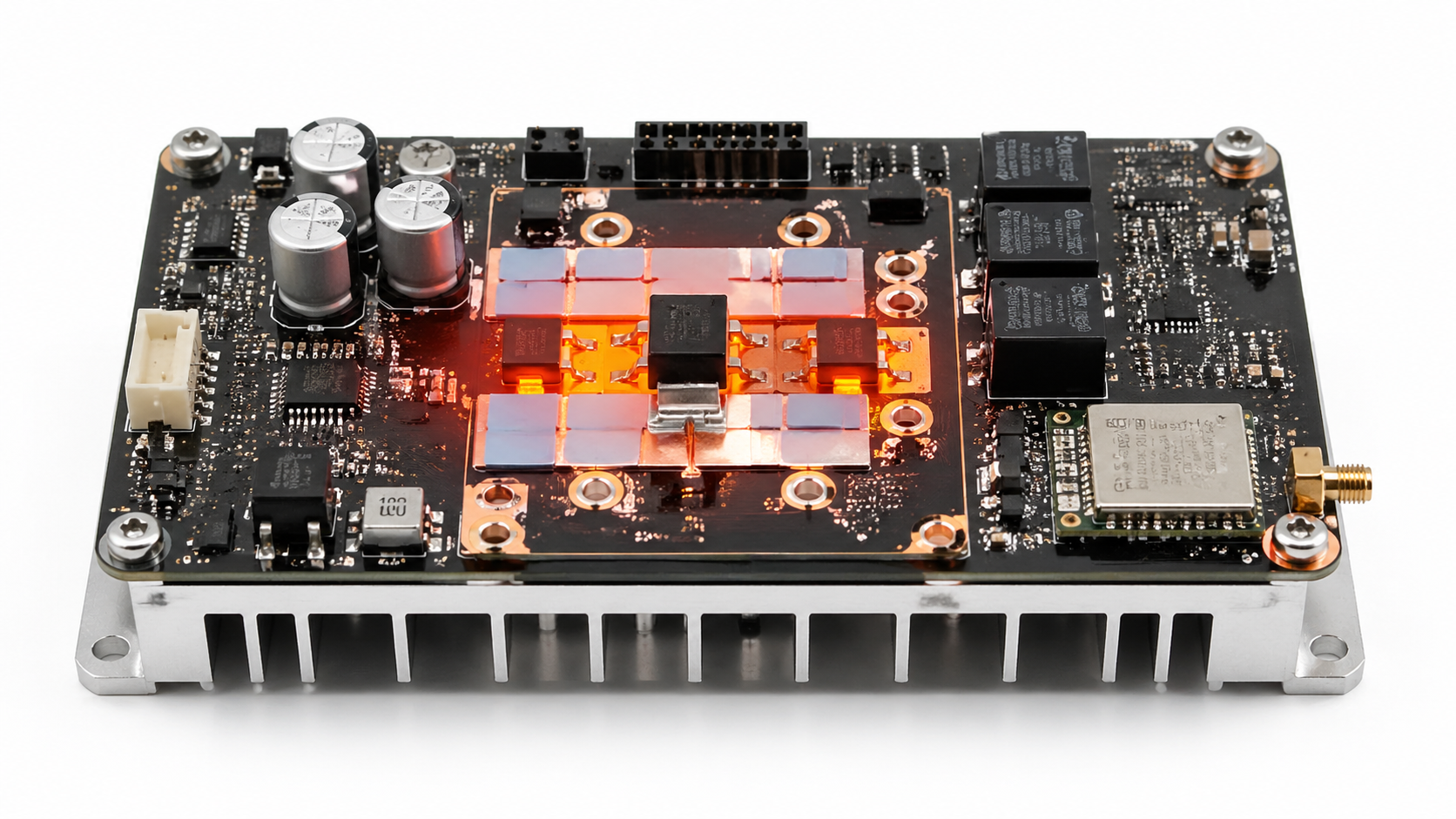

Heat-related failures rarely come from temperature alone. In most electronic products, failure rates rise because thermal risks are missed early in design, underestimated during sourcing, or introduced during PCB assembly and process control. For engineers, buyers, quality teams, and project owners, the practical question is not simply “is this device running hot?” but “which heat dissipation mistakes are quietly shortening life, destabilizing performance, and increasing warranty, scrap, or field-return risk?”

This article focuses on the thermal management errors that most often drive failure in real production environments: poor thermal path design, incorrect material choices, weak interface control, layout mistakes, inadequate airflow assumptions, soldering process issues, and compliance gaps during validation. For teams evaluating circuit board assembly, semiconductor reliability, high-performance capacitors, electrical relays, and RF transceiver systems, these are the issues that matter most.

Why heat dissipation mistakes raise failure rates faster than many teams expect

Thermal problems are cumulative. A component does not need to reach catastrophic temperature once to fail. More often, repeated operation above its ideal thermal range accelerates aging, shifts electrical behavior, weakens solder joints, dries out capacitor materials, alters relay contact reliability, and increases drift in RF performance.

That is why heat dissipation mistakes are so expensive: they often do not appear as immediate production defects. They show up later as intermittent faults, shortened service life, higher return rates, unstable performance under load, or unexplained reliability loss in environmental testing.

Across the semiconductor and EMS supply chain, the most damaging pattern is this: teams validate electrical function, but not the full thermal path from die to package, package to board, board to enclosure, and enclosure to ambient environment. When that chain is weak at any point, failure rates increase even if the BOM looks compliant on paper.

Which heat dissipation mistakes cause the most real-world failures?

The most common mistakes are not exotic. They are ordinary design, sourcing, and assembly decisions that create avoidable thermal resistance or thermal stress.

• Undersized thermal paths: insufficient copper area, poor via strategy, weak heat spreading, or enclosure designs that trap heat.
• Incorrect thermal interface materials: TIMs chosen by cost or generic datasheet claims instead of actual pressure, flatness, and operating conditions.
• Ignoring component interaction: hot components clustered together, heating nearby capacitors, relays, sensors, or RF sections.
• Overreliance on nominal datasheet ratings: assuming a component can run safely near its maximum temperature in a real assembly for long durations.
• Poor SMT soldering and reflow soldering control: creating voids, weak joints, insufficient wetting, or thermal fatigue susceptibility.
• Airflow assumptions not matching installed conditions: lab performance differs from field conditions due to dust, orientation, altitude, enclosure restrictions, or fan degradation.
• Incomplete validation: thermal simulation not correlated to measured data, or testing done at steady state only without realistic load cycling.

For most products, these mistakes do not act alone. Failure rates rise when several small thermal weaknesses combine.

What design teams most often miss in the thermal path

The thermal path must be evaluated as a system, not as isolated parts. Many teams confirm that a heat-generating component has a heatsink or thermal pad, but they do not verify whether heat can continue moving efficiently through the full assembly.

Typical design misses include:

• Package-to-board mismatch: the semiconductor package is thermally capable, but the PCB stack-up or land pattern cannot support heat removal.
• Insufficient thermal vias: vias are too few, too small, improperly filled, or badly connected to internal copper planes.
• Excessive thermal bottlenecks: heat has one narrow path out of a high-power area, causing local hot spots.
• Neglecting enclosure influence: internal heat accumulation is ignored until late-stage integration.
• Sensor placement errors: temperature feedback is collected away from the actual hotspot, giving a false sense of safety.

In circuit board assembly, even a strong PCB thermal design can fail if the final mechanical integration restricts airflow or adds thermal insulation where dissipation was expected. This is especially critical in compact power modules, RF transceiver systems, and mixed-signal assemblies where local temperature rise directly affects signal integrity and operating stability.

How thermal interface mistakes quietly undermine performance

Thermal interface materials are often treated as simple accessories, but in practice they are one of the most common hidden causes of elevated junction temperatures. A TIM with attractive conductivity on a datasheet may still perform poorly if assembly pressure is inconsistent, mating surfaces are uneven, pump-out occurs during cycling, or thickness is excessive.

Common interface mistakes include:

• Using a high-conductivity material in conditions where contact resistance dominates actual performance
• Selecting pad thickness to absorb tolerance stack-up but unintentionally increasing thermal resistance
• Applying grease or phase-change material inconsistently in production
• Failing to account for long-term aging, dry-out, or mechanical migration under vibration and thermal cycling
• Using interface materials that interact poorly with nearby plastics, coatings, or sensitive components

For procurement and quality teams, this is an important evaluation point: thermal interface performance should be judged under real assembly and life-cycle conditions, not just by vendor marketing values.

Why capacitors, relays, and RF sections are frequent thermal victims

Not every thermal failure starts in the hottest semiconductor. In many assemblies, nearby supporting components fail first because they are exposed to secondary heating they were never positioned or specified to handle.

High-performance capacitors are highly temperature-sensitive in long-life applications. Excess heat can accelerate electrolyte degradation, increase ESR drift, reduce capacitance stability, and sharply shorten service life.

Electrical relays are vulnerable to ambient heating around coils and contacts. Excessive local temperature can affect pick-up characteristics, insulation reliability, and contact wear.

RF transceiver systems are especially sensitive because temperature shifts affect frequency stability, gain behavior, noise performance, and calibration consistency. A thermal design that appears electrically acceptable at room temperature may become unstable across operating extremes.

This is why thermal review must include not only peak temperature components, but also thermally sensitive neighboring parts whose failure may occur first and be harder to diagnose.

How SMT soldering and reflow soldering settings create thermal reliability problems

Heat dissipation is not only about operation; it is also shaped by manufacturing quality. Poor SMT soldering and reflow soldering settings can reduce thermal conduction while also introducing mechanical weakness.

Key process-related mistakes include:

• Excessive voiding under thermal pads: reduces effective heat transfer from power packages to the board.
• Improper reflow profile: can create incomplete wetting, intermetallic issues, warpage effects, or residual stress.
• Paste volume imbalance: affects standoff height and heat transfer consistency.
• Board design-process mismatch: copper imbalance or package density creates uneven heating during reflow.
• Insufficient inspection criteria: thermal pad joints may pass visual screening while still performing poorly thermally.

For quality control and process engineers, this means thermal reliability cannot be separated from assembly discipline. X-ray inspection, profile verification, void acceptance criteria, and ongoing process capability analysis are essential where thermal pad packages or power devices are involved.

Why datasheet compliance is not enough for semiconductor thermal reliability

One of the most common evaluation errors is assuming that if a component meets published thermal limits, the product is safe. In reality, datasheet thermal values are often measured under standardized test conditions that differ substantially from the final application.

Teams should be cautious when using:

• Junction-to-ambient values from idealized test boards
• Maximum operating temperature as a normal design target
• Vendor reliability claims without board-level validation
• Short-duration test data to predict long-term field life

Semiconductor compliance evaluation should include real board stack-up, actual airflow, enclosure effects, power cycling behavior, and neighboring heat sources. For high-reliability or IPC-Class 3 related environments, thermal derating and evidence-based benchmarking are far more meaningful than minimum nominal compliance.

What buyers, project managers, and finance approvers should ask before approving a design or supplier

Thermal risk is not only an engineering issue. It affects warranty exposure, service cost, production yield, field reliability, and lifecycle profitability. Non-engineering stakeholders should ask targeted questions that reveal whether thermal management has been validated properly.

• Has the product been tested under worst-case ambient and load conditions?
• What is the measured hotspot temperature, not just the reported average temperature?
• What derating margin exists for thermally sensitive components?
• Are TIMs, solder joints, and thermal pad assemblies controlled as production-critical characteristics?
• Has simulation been correlated with physical measurements?
• Are there supplier-to-supplier differences in package thermal behavior or material quality?
• What failure modes appear after thermal cycling, not just initial operation?

These questions help commercial teams avoid approving a design that appears cost-efficient at purchase stage but creates far higher cost through field returns, downtime, and redesign.

How to evaluate whether a thermal design is actually robust

A robust thermal design is not simply one that “passes test.” It is one that retains stable performance and acceptable life margin across manufacturing variation, environmental change, and real usage conditions.

A practical evaluation framework should include:

1. Thermal path review: map every major heat flow route from component to ambient.
2. Hotspot identification: measure actual localized peaks using appropriate instrumentation.
3. Derating analysis: confirm that components are not operated too close to thermal limits.
4. Assembly integrity check: verify solder voiding, interface quality, planarity, and contact consistency.
5. Dynamic load testing: evaluate cycling, transients, startup peaks, and repeated stress.
6. Environmental realism: include enclosure, contamination, airflow degradation, and installation orientation.
7. Long-term reliability testing: assess drift, aging, and accumulated damage, not only pass/fail at initial build.

This approach gives technical evaluators, quality managers, and procurement leads better evidence for comparing designs, suppliers, and process controls.

How to reduce failure rates caused by heat dissipation mistakes

Reducing thermal failure risk usually does not require a single dramatic fix. It requires disciplined control over the points where thermal assumptions often break down.

The most effective actions are:

• Design thermal margins early instead of relying on late-stage fixes
• Separate major heat sources from thermally fragile components
• Select PCB materials, copper distribution, and via structures based on heat flow needs
• Validate thermal interface materials in real mounting conditions
• Tighten SMT soldering and reflow soldering controls for thermal pad devices
• Use measured thermal data to confirm simulation accuracy
• Apply derating policies to capacitors, semiconductors, relays, and RF-critical parts
• Build supplier qualification around reliability evidence, not only compliance claims

For organizations managing global semiconductor and EMS supply chains, independent benchmarking and standardized thermal compliance reporting can make these decisions more repeatable and less dependent on vendor self-reporting.

Conclusion

Heat dissipation mistakes raise failure rates because they are often systemic, small, and initially invisible. The real risk usually comes from overlooked details in the thermal path, poor interface control, inadequate PCB and enclosure design, weak process discipline in circuit board assembly, and overconfidence in nominal semiconductor compliance data.

For engineers, operators, evaluators, procurement teams, quality leaders, and project managers, the right response is clear: treat thermal management as a measurable reliability discipline, not a last-step check. When thermal assumptions are validated against real operating conditions, teams can lower failure rates, improve product life, and make more defensible sourcing and design decisions.
