What BGA defects reveal weak SMT process capability

BGA defects matter because they are rarely just localized assembly issues. In most factories, a defect under a ball array is the visible symptom of a broader process capability problem that may already be affecting other packages, other lines, and future field reliability. For quality and safety managers, that is the real question behind the topic: not whether a bridge, void, head-in-pillow event, or non-wet open can be named correctly, but what these signals say about whether the SMT process is statistically stable, transferable across products, and robust enough for high-reliability output.

This is why BGA-related failures tend to trigger disproportionate concern in audits and corrective action reviews. They are harder to inspect directly, harder to rework without side effects, and more likely to escape if the factory relies on a narrow inspection regime. In practical terms, BGA defects often expose weaknesses across the entire manufacturing chain: solder paste release, placement accuracy, board warpage control, reflow profiling, moisture handling, and feedback discipline between process engineering and quality teams.

Why BGA defects are a process capability issue, not just a defect category

In conventional through-hole or leaded SMT packages, many defects are visually apparent and more forgiving. BGAs are different. Their interconnections are hidden, pitch is tighter, thermal mass varies significantly by design, and joint formation depends on several process variables interacting within a narrow window. That means one bad result does not usually point to one bad operator or one bad reel. It points to a process window that may be too narrow, poorly characterized, or drifting without detection.

For quality teams, this distinction is critical. A factory can report acceptable first-pass yield and still have weak SMT process capability if success depends heavily on product-specific tuning, frequent manual intervention, or post-process screening. In other words, passing units do not automatically prove a capable process. With BGAs especially, a process can appear compliant while still carrying elevated latent-risk exposure.

That is why experienced auditors pay attention to repeatability and control limits rather than isolated defect images. A BGA defect trend reveals whether the line can consistently handle variation in pad design, paste volume, component coplanarity, board finish, and thermal loading without creating hidden reliability debt.

What specific BGA defects tend to reveal

Not every defect means the same thing. The useful question is what kind of capability weakness each defect is most likely to expose.

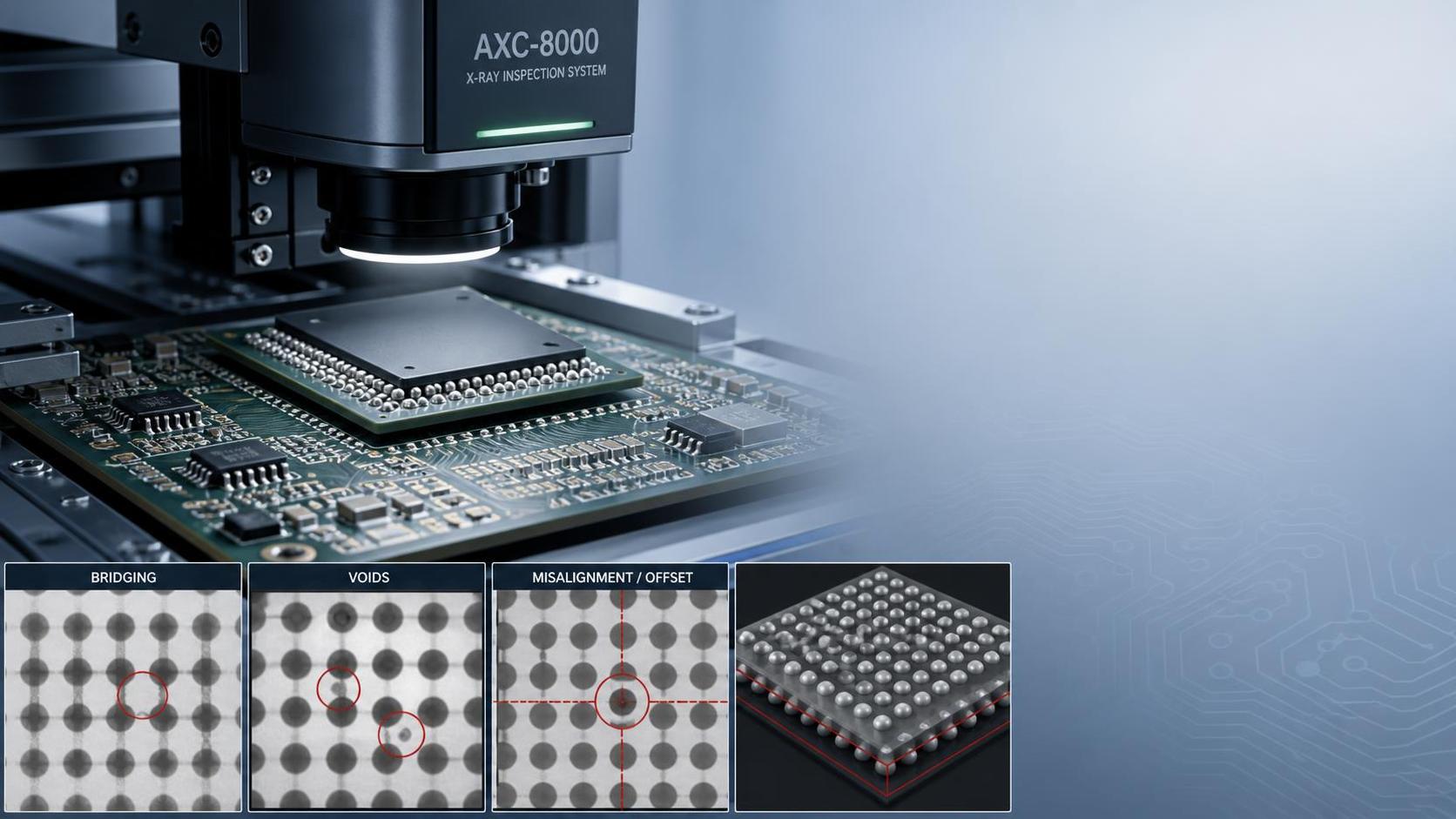

Bridging and solder shorts

When bridging appears in BGA-related assemblies, the root cause is often traced upstream to stencil design, aperture geometry, paste deposition control, or placement deviation. On fine-pitch devices, even small variation in paste volume can overwhelm the process margin. If the response is only to tighten visual inspection or increase cleaning frequency, the factory may miss the real issue: insufficient control of print repeatability.

For quality managers, recurring bridges are often a warning that the line’s Cp/Cpk performance around solder paste deposition may be weaker than reported, especially if capability is measured only on simplified test coupons rather than on high-density production layouts.

Head-in-pillow and non-wet opens

These defects usually point to a more complex interaction of oxidation, warpage, paste activity, and reflow profile alignment. They matter because they are not always stable from run to run. A line may produce acceptable output during engineering builds and then show intermittent opens in volume production when board thickness, package moisture exposure, or oven loading changes.

That instability is precisely what makes them a process capability problem. If the process works only when material, ambient conditions, and throughput are unusually favorable, the real capability is weak even if short-term yields look acceptable.

Excessive voiding

Voiding is often oversimplified in industry discussions. Some level of voiding may be acceptable depending on package type, thermal requirements, and customer criteria, while excessive or poorly distributed voiding can become a thermal and mechanical reliability concern. The important point is that abnormal voiding patterns frequently reveal inconsistency in stencil strategy, paste formulation behavior, reflow ramp/soak settings, surface finish interaction, or pad design.

For safety-sensitive or high-power applications, voiding should not be treated as merely an X-ray cosmetic issue. It may indicate that the process cannot maintain robust thermal interfaces under realistic production variation.

Ball collapse inconsistency and misalignment

Uneven collapse or consistent offset patterns often suggest that the process window around placement force, tack behavior, pad finish, planarity, or thermal uniformity is too narrow. In some cases, the package is blamed first, but line-level evidence may show that different machine programs, nozzle wear states, or support tooling conditions are contributing more than the incoming component itself.

That matters commercially as well as technically. Misdiagnosing a capability issue as a supplier quality issue can distort vendor scorecards, delay containment, and create friction between procurement and manufacturing without fixing the real source of variation.

Where weak SMT capability usually hides

Factories rarely fail on one parameter alone. Weakness usually sits in the interfaces between processes and in the assumptions each team makes about the other.

Stencil and print process control

BGA quality begins at paste deposition. Yet many organizations still treat printing as a mature, low-risk step unless there is obvious smearing or insufficient transfer. That is a mistake. For area-array devices, print variation is often the earliest and most influential source of downstream instability. Aperture reductions, stencil thickness compromises across mixed-technology boards, understencil cleaning intervals, paste age, and environmental exposure all affect whether the process remains centered.

If BGA defects rise when product mix changes, one likely explanation is that the print process was optimized for average conditions, not validated for the extremes that actual scheduling creates.

Placement accuracy beyond machine specifications

Quoted placement accuracy from equipment vendors is useful, but it does not equal in-process accuracy under production conditions. Real capability depends on feeder condition, nozzle wear, vision calibration, board support, fiducial quality, and package-specific handling behavior. Quality teams should be cautious when production engineering cites machine specification sheets as proof of process robustness. Capability is demonstrated on the line, not in the brochure.

Reflow profile transferability

Many BGA issues are really profile management issues. A profile that works for one board architecture may not transfer to another with different copper balance, ground plane density, or mixed thermal mass. The risk grows when throughput pressure encourages standardized oven recipes across dissimilar assemblies.

From a compliance and reliability standpoint, the concern is not only whether the assembly passes immediate electrical test. The concern is whether joint formation was achieved with enough margin to survive thermal cycling, vibration, or long-term service stress. That distinction is central for IPC-Class 3 environments and any application where failure consequences extend beyond scrap cost.

Inspection discipline and false confidence

Automated optical inspection is valuable, but it has limited visibility into hidden joints. X-ray inspection improves coverage, yet even that can become a false comfort if sampling plans are weak, interpretation criteria are inconsistent, or defect classification is disconnected from process feedback. A factory that “has AXI” is not necessarily a factory that understands its BGA risk.

What matters is whether inspection data closes the loop. If the same defect family appears repeatedly without a meaningful shift in stencil strategy, profile window, machine maintenance, or design-for-manufacturing review, then inspection is acting as a recorder, not a control mechanism.

What quality and safety managers should challenge in common factory narratives

Several common statements sound reassuring but do not hold up well in real operating environments.

• “Yield is high, so the process is capable.” High yield can coexist with weak robustness, especially when production volume is low, product mix is narrow, or latent defects are not captured by outgoing test.
• “The issue is isolated to one package.” BGA failures often expose broader weaknesses in printing, thermal management, moisture control, or line discipline that may affect QFNs, CSPs, and bottom-terminated components as well.
• “The machine is within spec.” Equipment conformance does not prove process capability under loaded, variable, day-to-day production conditions.
• “X-ray found only a few defects.” Sampling results are only meaningful if the sampling plan reflects product risk, lot variation, and process drift behavior.
• “Rework solves the problem.” Rework may recover shipment value, but it does not restore confidence in the original process window and can introduce its own reliability concerns.

For readers responsible for quality governance, these distinctions matter because they affect whether a problem is closed administratively or actually reduced operationally.

How to judge whether the risk is relevant to your business scenario

Not every BGA defect trend deserves the same response. The business impact depends on product function, field environment, repairability, traceability obligations, and customer tolerance for latent reliability risk.

In lower-criticality consumer products, an organization may decide that occasional voiding within agreed criteria is manageable if cost and throughput remain competitive. In industrial, automotive-adjacent, medical, aerospace, or infrastructure electronics, the threshold is different. There, weak SMT process capability around BGAs can become a governance issue because hidden interconnect defects may translate into intermittent field failures, difficult root-cause attribution, and elevated recall or liability exposure. Sector-specific requirements may apply, and some expectations should be verified against customer contracts and applicable standards【待核实】.

A practical way to assess relevance is to ask four questions:

What to look for in supplier and internal capability reviews

When assessing an EMS provider, internal plant, or new production transfer, quality teams should focus less on generic claims and more on evidence of controlled variation. The useful signals are usually operational, not promotional.

• Process window documentation: Is there evidence that stencil design, paste selection, and reflow settings were validated for the actual package families and board architectures in scope?
• Capability data under production conditions: Are deposition consistency, placement repeatability, and defect trends tracked on live builds, not only engineering samples?
• Moisture and handling discipline: Are MSD controls, floor life practices, and bake decisions managed systematically, especially for packages vulnerable to warpage-related defects?
• Inspection strategy: Is X-ray used intelligently by risk level, or mainly as an audit talking point?
• Failure analysis depth: When BGA escapes occur, does the organization perform cross-sectional analysis or equivalent root-cause work, or does it stop at symptom description?
• Corrective action quality: Do actions change the process inputs, or only intensify sorting and reinspection?

This is also where an independent benchmarking perspective can add value. Organizations such as SCM are relevant not because they “certify quality” in a marketing sense, but because independent technical comparison can help procurement and engineering teams distinguish between documented capability and assumed capability. In a supply chain where precision claims are easy to make and hard to normalize, that distinction is useful.

The strategic shift: from defect counting to capability assurance

The broader industry trend is moving in one direction. As package density rises, thermal constraints tighten, and acceptable process margins narrow, BGA quality can no longer be managed mainly by defect containment. It has to be managed through capability assurance: measurable control of printing, placement, thermal exposure, material behavior, and inspection feedback as one connected system.

For quality and safety managers, that changes the role from defect reviewer to risk interpreter. A BGA defect is not just something to classify against a workmanship standard. It is an early warning that the manufacturing system may be less stable than yield reports suggest. The sooner that signal is treated as a capability question, the more useful it becomes for supplier selection, process investment, audit focus, and field-risk prevention.

That is usually what people searching this topic really need to know: not whether BGA defects are bad in principle, but what they reveal about the maturity of the SMT operation behind them, and whether that operation can be trusted when the product, volume, or reliability requirement gets harder.
