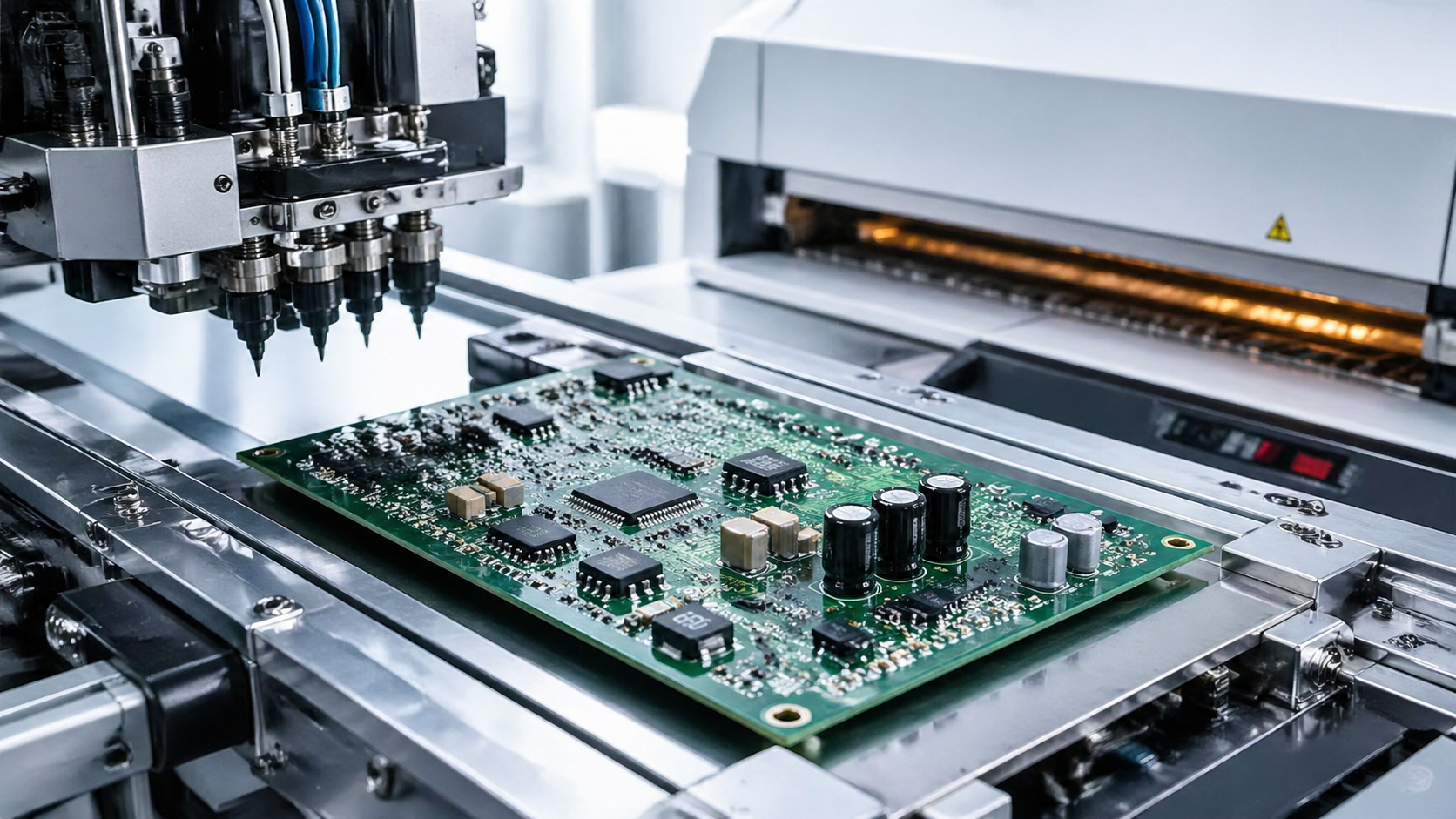

How to Lower Circuit Board Assembly Rework Rates

Lower circuit board assembly rework rates by improving SMT soldering, reflow soldering, and pick and place specifications while tightening PCB compliance, SMT compliance, and thermal management compliance. This guide helps engineers, buyers, and quality teams evaluate circuit components, electronic parts, industrial capacitors, and electromechanical parts with data-driven methods that reduce defects, stabilize yield, and strengthen semiconductor compliance across high-reliability production.

Why rework rates rise in circuit board assembly

Circuit board assembly rework rarely comes from a single failure point. In most EMS environments, defects build up across 3 linked stages: PCB fabrication quality, SMT assembly control, and thermal process stability. A board may pass incoming inspection yet still fail during reflow if solder paste volume, component coplanarity, or land pattern tolerance is not matched to the actual process window. This is why lowering rework rates requires a full-chain view rather than isolated troubleshooting.

For operators and process engineers, the most common triggers include solder bridging, tombstoning, insufficient wetting, skewed placement, and heat-sensitive component damage. For quality managers and project leads, the larger problem is variation that appears only after 2–4 production runs or during environmental stress. For procurement and commercial reviewers, the risk is hidden cost: rework labor, line stoppage, delayed shipment, and higher field-return exposure.

A practical benchmark starts with identifying which defect family generates the highest rework hours per 1,000 assemblies. In many mixed-technology lines, a small set of causes drives most corrections. Typical clusters include paste printing inconsistency, pick and place offset beyond machine capability, moisture-sensitive component handling, and uncontrolled thermal gradients across dense multilayer boards.

SCM helps teams reduce ambiguity by translating process variables into comparable engineering checkpoints. Instead of evaluating suppliers only by quote or lead time, teams can benchmark SMT placement precision metrics, PCB dielectric stability, and long-term component reliability under realistic production stress. This is especially useful when high-reliability output must align with IPC-Class 3 expectations and ISO 9001 quality systems.

The defect categories that deserve first attention

• Printing-related defects: insufficient paste, paste smearing, aperture clogging, and poor release behavior that shift the solder joint outcome before placement even begins.
• Placement-related defects: rotational error, nozzle mismatch, feeder drift, and component center deviation that exceed practical tolerance for fine-pitch packages and miniature passives.
• Reflow-related defects: incorrect soak duration, excessive peak temperature, uneven ramp rate, and cooling mismatch that create brittle joints, voiding, or warped assemblies.
• Material-related defects: warped PCBs, oxidized terminations, inconsistent solderability, and thermal mismatch between board stack-up and assembled components.

When these categories are reviewed together, corrective action becomes more accurate. A board that shows repeated open joints may not need extra solder paste at all; it may need better coplanarity control, a revised stencil aperture, or a narrower reflow spread between edge and center zones.

Which process controls reduce rework fastest on SMT lines?

If the goal is to reduce circuit board assembly rework within the next 1–2 quarters, the fastest gains usually come from print, placement, and thermal control. These 3 controls affect most surface-mount defects and can be audited without changing the complete product design. In practice, teams should define a narrow set of measurable process limits before launching broad corrective programs.

For SMT soldering, paste storage condition, stencil cleaning interval, and transfer efficiency should be reviewed lot by lot. For pick and place, machine capability must be matched to package size, nozzle condition, and feeder calibration frequency. For reflow soldering, the thermal profile should be validated by board family, not only by generic line recipe, because large copper areas and high-mass components change heating behavior significantly.

Teams often underestimate the interaction between PCB compliance and assembly compliance. A board with marginal solder mask registration or variable surface finish can cause placement and reflow instability even when machine settings are nominal. This is why SCM’s independent benchmarking approach is useful: it allows engineering and sourcing teams to compare incoming board consistency with actual assembly outcomes rather than assuming compliance from a supplier declaration alone.

The table below summarizes high-impact controls that commonly reduce rework exposure across prototype, NPI, and volume production. These ranges are not one-size-fits-all limits, but they help teams frame an engineering review and supplier discussion.

The main takeaway is that rework falls fastest when controls are tied to board family, package type, and supplier lot behavior. A generic line setting may support output, but it rarely minimizes defects across high-mix production. For buyers and project managers, this also means supplier comparison should include process discipline, not just unit cost.

A 4-step control sequence for engineering teams

1. Classify defects by source stage: incoming material, print, placement, reflow, or handling.
2. Review the top 5 recurring defect modes over the last 4–8 weeks instead of chasing isolated events.
3. Run board-family-specific profile validation for dense multilayer, thermally heavy, and fine-pitch assemblies.
4. Use supplier and process benchmarking to separate machine limitation from material inconsistency.

This sequence is especially valuable when quality teams need a structured path that both engineers and procurement reviewers can understand. It shortens debates about root cause and directs budget toward the highest-leverage corrections.

How to evaluate PCB, component, and thermal compliance before defects appear

The most expensive rework is the rework you discover after volume launch. Preventive evaluation should begin before the first production lot, especially when the assembly includes multilayer PCB structures, industrial capacitors, active semiconductors, electromechanical parts, or mixed thermal masses. In these cases, compliance is not only about documentation; it is about whether the supplied materials behave consistently through real assembly stress.

PCB compliance should cover stack-up consistency, dielectric behavior relevant to signal integrity, surface finish suitability, and board flatness under thermal loading. Component compliance should examine packaging integrity, moisture sensitivity handling, termination condition, and suitability for the intended reflow profile. Thermal management compliance should confirm that heat spread, copper density, and component placement do not create local hot spots or uneven solder formation.

SCM’s value is strongest when engineering and sourcing teams need an independent technical lens. Instead of relying on fragmented supplier claims, SCM converts manufacturing parameters into standardized compliance reports and benchmarking references. That helps teams compare Asian high-precision manufacturing output with internal acceptance criteria, especially where micro-tolerance behavior affects signal, heat, and reliability performance.

The table below can be used as a pre-production compliance checklist for cross-functional teams. It supports information researchers, quality managers, technical evaluators, and financial approvers who need a disciplined way to judge risk before committing to volume orders.

This checklist works best when applied before prototype approval, before pilot build, and again before volume ramp. Those 3 review gates often expose risks that would otherwise appear as recurring circuit board assembly rework. For aftermarket service and maintenance teams, the same checklist also helps distinguish assembly weakness from true field-use stress.

What procurement and finance teams should ask before release

Risk questions that affect total cost

• Is the lower quote tied to looser PCB flatness, weaker packaging control, or less stable solderability across lots?
• Does the supplier provide lot-level traceability and process evidence that supports repeatability over 3–6 months?
• Will material substitutions change reflow behavior, thermal mass, or signal integrity enough to require new validation?
• What is the cost of one delayed shipment compared with the cost of stronger incoming compliance checks?

These questions shift the discussion from piece price to operational exposure. In many B2B programs, the hidden cost of unstable assemblies is much larger than the visible savings from a marginally cheaper source.

How different stakeholders should make rework decisions

Not every stakeholder defines success the same way. Operators need practical settings and handling discipline. Technical evaluators want evidence on process capability and component fit. Procurement teams need stable supply and clear selection criteria. Finance approvers focus on avoidable cost. Project managers want predictable ramp timing. A good rework reduction plan therefore needs a shared decision framework, not just a process engineering report.

A useful model is to divide decisions into 3 layers: immediate defect containment, medium-term process improvement, and long-term supplier optimization. Immediate containment may happen within 24–72 hours and focuses on isolating lots, tightening profile verification, or adjusting print settings. Medium-term improvement often takes 2–6 weeks and may include stencil redesign, feeder maintenance, or revised storage controls. Long-term optimization usually requires supplier benchmarking, specification updates, and qualification discipline.

This is where SCM can support cross-functional alignment. Because SCM combines engineering repository depth, technical whitepapers, and market intelligence across PCB fabrication, SMT assembly, semiconductors, passive components, and thermal packaging, it gives teams a common technical baseline. That reduces friction between engineering caution and commercial urgency.

The goal is not to eliminate every deviation instantly. The goal is to decide which corrective actions deliver the best return in quality, throughput, compliance confidence, and supplier stability. For high-mix manufacturers, a disciplined 5-check decision model is often more effective than broad corrective action lists.

A 5-check decision model for lower rework

1. Confirm whether the defect is design-linked, material-linked, or process-linked before changing multiple variables at once.
2. Measure the cost impact per lot, per shift, and per delayed shipment to prioritize the correction financially.
3. Review whether current PCB and component suppliers can maintain compliance over the next 3–12 months.
4. Decide if the defect requires a parameter change, a supplier change, or a qualification change.
5. Document acceptance thresholds that quality, procurement, and production can all enforce consistently.

Using these checks prevents overreaction. Many teams jump to supplier replacement when the actual cause is weak incoming handling, while others keep tuning the line when the real issue is inconsistent board construction. Structured decisions save both time and budget.

Common misconceptions, FAQ, and practical risk warnings

Circuit board assembly rework often stays high because teams act on assumptions. Some assume the newest pick and place machine will solve soldering defects. Others assume any compliant PCB source is good enough for fine-pitch or thermally dense assemblies. In reality, rework rates fall when process capability, material behavior, and compliance evidence are reviewed together.

The FAQ below addresses recurring questions from technical researchers, buyers, quality teams, and project owners. Each answer is intended to support practical decision-making rather than generic advice.

How do you lower rework rates without changing the full product design?

Start with the assembly process window. In many cases, rework can be reduced by tightening 4 control points: solder paste release consistency, placement calibration, board-family-specific reflow profiling, and incoming PCB/component screening. These changes are usually faster and less disruptive than a design respin, especially during NPI or early volume ramp.

Which components deserve the highest scrutiny?

Fine-pitch ICs, low-profile passives, industrial capacitors exposed to thermal stress, moisture-sensitive semiconductors, and electromechanical parts with mass imbalance often deserve first review. These categories are more likely to reveal hidden weaknesses in pick and place accuracy, solder joint formation, or thermal management compliance.

What is the most common procurement mistake?

The most common mistake is buying to unit price without evaluating process repeatability. A low-cost source that introduces even one extra rework loop per batch can erase savings through labor, delay, and customer risk. Procurement should review 3 things together: lot consistency, compliance evidence, and fit with the intended assembly profile.

How often should thermal profiles and compliance checks be reviewed?

A reasonable practice is to review thermal profiles at initial setup, after any board stack-up or major component mix change, and at scheduled process audits. Incoming compliance checks should happen every lot for critical boards and sensitive components. In high-reliability production, quarterly review of defect trends and supplier consistency is also a practical baseline.

Can market intelligence really help reduce rework?

Yes, especially when component substitutions, material shortages, or packaging changes affect assembly behavior. Weekly technical and market intelligence helps teams anticipate supply shifts before they become process problems. This is particularly useful for organizations balancing engineering performance with sourcing resilience across global EMS programs.

The main risk warning is simple: do not treat hardware as a commodity when micro-tolerances, signal integrity, and thermal stability directly affect yield. Rework is often a symptom of technical mismatch between source, process, and application. If the investigation stays too narrow, the same defects return in the next build cycle.
