MCU and Chipsets Cost Traps in Early Planning

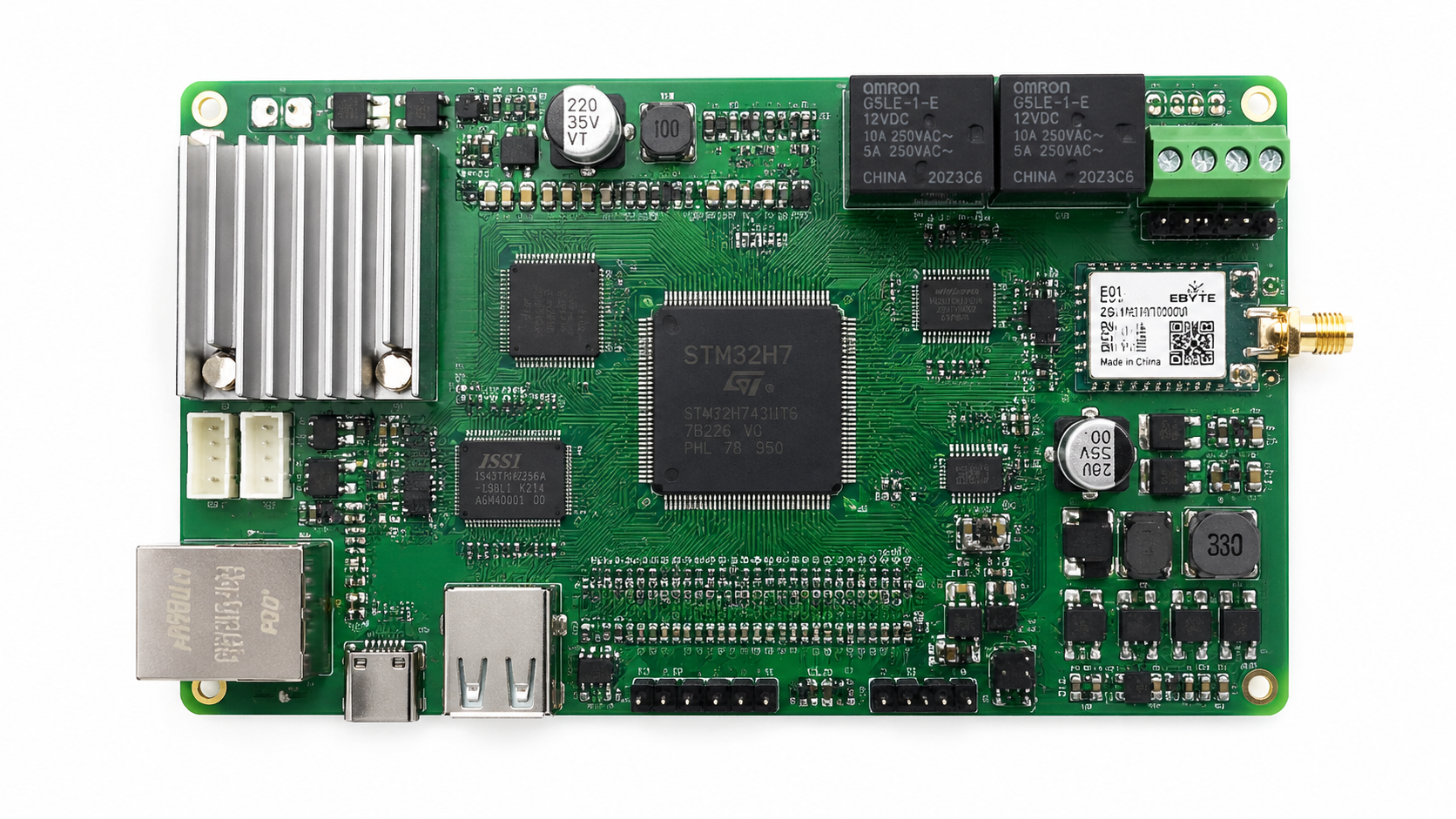

Early MCU and chipset planning often hides cost traps that ripple across circuit components, electronic parts, and circuit board assembly decisions. From electrical relays and high-performance capacitors to RF transceiver selection, teams must balance semiconductor compliance, SMT compliance, PCB compliance, and thermal management compliance. This guide helps engineers, buyers, and project leaders spot hidden risks early and build smarter sourcing and manufacturing strategies.

In semiconductor and EMS programs, the first 10% of architecture decisions often determines 60% to 80% of downstream cost exposure. A low-priced MCU can trigger expensive PCB layer growth, a chipset with weak lifecycle visibility can force redesign in 12 to 18 months, and a marginal thermal profile can increase validation, field service, and compliance burdens far beyond the original BOM target.

For sourcing teams, technical evaluators, quality leaders, and finance approvers, the challenge is not simply choosing a component that works in the lab. The real question is whether the selected MCU and supporting chipset ecosystem can survive procurement volatility, manufacturing tolerances, environmental stress, and future firmware or interface changes without eroding margin or launch timing.

That is where structured benchmarking matters. SiliconCore Metrics (SCM) supports global R&D and procurement functions with data-driven insight across PCB fabrication, SMT assembly, semiconductors, passive components, and thermal packaging. In early planning, this type of independent technical visibility helps teams detect cost traps before tooling, qualification, and volume commitments lock them in.

Why Early MCU and Chipset Choices Create Hidden Cost Exposure

An MCU or chipset decision is rarely isolated. It affects memory topology, power rail count, oscillator selection, RF shielding needs, relay driving methods, capacitor derating strategy, connector choices, and even test fixture complexity. In many projects, the unit price delta between two controller options may be only 3% to 8%, while the total landed cost impact after PCB, assembly, validation, and support can exceed 20%.

One common trap is underestimating pin-multiplexing and interface expansion needs. Teams may choose a lower-cost device with just enough GPIO, SPI, UART, or CAN resources for revision A. Within 6 to 9 months, added sensors, transceivers, or safety diagnostics require external expanders, extra level shifting, and firmware rework. The original savings disappear, and assembly yield may fall due to the higher component count.

Another trap appears in clocking, power integrity, and EMC behavior. A chipset that looks acceptable on a reference design may demand tighter decoupling placement, lower-ESR capacitors, or more PCB layers when integrated into a dense production board. If the design moves from 4 layers to 6 layers, the board cost increase can outweigh the MCU savings within the first production lot.

Lifecycle risk also matters. In volatile silicon markets, forecast visibility shorter than 26 weeks can disrupt procurement planning. If a chipset family lacks a stable roadmap or alternate package strategy, buyers may face spot-market premiums, dual-sourcing difficulties, and emergency requalification costs that were never included in the initial budget.

Typical Early-Stage Cost Traps

• Under-scoped I/O and memory headroom, leading to external add-on devices in phase 2.
• Thermal dissipation underestimated by 5°C to 15°C under real enclosure conditions.
• Package selection that increases SMT defect sensitivity, especially with fine-pitch BGA or QFN.
• Compliance gaps tied to IPC-Class 3, insulation distance, or environmental reliability targets.
• Lead-time concentration in one package, wafer node, or regional supply base.

The planning goal is not maximum specification at any price. It is to select an architecture with enough margin to absorb design evolution, compliance testing, and supplier variability without creating avoidable cost escalations in NPI or mass production.

The Ripple Effect Across PCB, SMT, Thermal, and Compliance Workstreams

MCU and chipset choices directly influence board stack-up, assembly process windows, and long-term reliability. A high-speed interface such as USB, Ethernet, DDR, or RF front-end integration can tighten impedance control, dielectric consistency, and routing density requirements. What begins as a silicon decision quickly becomes a fabrication and assembly decision.

For PCB teams, denser packages and higher switching speeds may require 90Ω or 100Ω controlled impedance, narrower trace spacing, and stricter dielectric tolerance. If the chosen chipset needs better signal integrity than the original material stack can support, procurement may need to move to higher-grade laminates or lower-loss materials, raising both board cost and vendor qualification time.

For SMT assembly, package form factor changes can alter stencil design, reflow profile sensitivity, and inspection complexity. Fine-pitch devices often demand tighter placement precision and stronger process control. A board assembled with standard consumer-grade assumptions may not meet the defect escape threshold expected in industrial, automotive-adjacent, or mission-critical environments.

Thermal management is another frequent blind spot. A chipset with only 1 W to 2 W of nominal dissipation may seem manageable, but enclosed operation, nearby power stages, and ambient conditions of 55°C to 85°C can create localized hotspots. This may require thermal vias, copper balancing, interface materials, or mechanical redesign that was not visible in the early BOM review.

How a Silicon Decision Spreads Cost Across Manufacturing

The table below shows how early MCU or chipset choices can trigger secondary cost drivers beyond the purchase price of the semiconductor itself.

The key lesson is that the cheapest semiconductor rarely remains the cheapest system-level choice. Cross-functional review between design, sourcing, manufacturing, and quality functions should happen before schematic freeze, not after pilot build issues begin to surface.

Practical review points before design freeze

1. Verify at least 15% to 30% I/O and memory headroom for revision growth.
2. Model thermal conditions at worst-case ambient, not just room temperature bench tests.
3. Confirm whether target EMS partners can repeatedly build the selected package mix.
4. Check compliance impact on PCB spacing, material choice, and stress reliability plans.

A Practical Selection Framework for Engineers, Buyers, and Finance Teams

A sound planning process needs more than a comparison of MCU clock speed, flash size, and quoted piece price. For most B2B electronics programs, selection should be scored across at least 5 dimensions: technical fit, manufacturability, supply continuity, compliance burden, and lifecycle economics. This reduces the chance that one department optimizes for its own metric while shifting hidden cost to another team.

Engineering teams should define the minimum viable headroom before supplier engagement. This often means reserving 20% flash margin, 10% to 20% RAM margin, and at least 1 future interface pathway for firmware growth or field updates. Buyers then need to test whether those design assumptions are commercially sustainable across 2 to 3 forecast horizons, such as prototype, ramp, and steady-state production.

Finance approvers should not review only the quoted semiconductor line item. They should ask whether the preferred option changes layer count, test coverage, yield, or qualification duration. A chipset that reduces unit cost by $0.40 but extends time-to-release by 4 weeks can become the more expensive choice when project overhead, delayed revenue, and expediting fees are included.

Quality and after-sales teams also need a voice. Component temperature grade, passive derating, and relay driver robustness may determine field service frequency over a 3-year to 7-year product life. Early reliability assumptions should therefore be linked to realistic service environments, not just nominal datasheet conditions.

Recommended Evaluation Matrix

The following matrix can be used during architecture review to compare candidate MCU or chipset platforms before prototype commitment.

This matrix helps stakeholders convert abstract technical debate into a structured decision. It also makes vendor discussions more productive because engineering and procurement can ask for evidence tied to measurable risk, not just marketing claims.

Minimum questions to ask in sourcing reviews

• What is the forecasted availability window for the selected package over the next 4 quarters?
• Will this device force a board stack-up change, special assembly process, or added inspection step?
• How much capacitor derating and thermal margin is required at 70°C or above?
• Is there a realistic second-source strategy for critical supporting components such as regulators, RF parts, and memory?

Implementation Controls That Prevent Rework and Cost Leakage

Once a preferred MCU and chipset path is selected, teams still need discipline during implementation. Many avoidable overruns happen because the architecture review is sound, but execution controls are weak. This is especially true when procurement starts alternates without electrical review, or when design teams validate only the chipset and not the full chain of passives, relays, connectors, and thermal paths around it.

A robust NPI control plan should cover at least 3 stages: design validation, manufacturing readiness, and pilot reliability review. During design validation, teams should verify signal integrity margins, decoupling placement, and worst-case current draw. During manufacturing readiness, they should confirm stencil design, placement tolerances, solder joint inspection criteria, and PCB fabricator capability. Pilot reliability review then checks thermal cycling, humidity exposure, and field-like load behavior.

Documentation is equally important. If component alternates are allowed, define clear electrical, thermal, and compliance boundaries. A substitute capacitor with the same nominal value but different ESR behavior can change regulator stability. A different relay coil profile can alter driver stress. A replacement RF transceiver can affect layout sensitivity and certification scope. Small substitutions can create major debug cost when unmanaged.

Independent technical benchmarking can shorten these loops. SCM’s focus on PCB dielectric behavior, SMT placement precision, component reliability under stress, and compliance-oriented reporting is especially useful when global teams need a neutral basis for comparing manufacturing options across regions or suppliers.

Recommended 5-Step Control Process

1. Freeze functional requirements and define quantitative headroom targets before final device selection.
2. Review PCB, thermal, and assembly implications with the EMS partner before layout release.
3. Approve alternates only through cross-functional engineering, sourcing, and quality sign-off.
4. Run pilot builds with monitored defect, rework, and temperature data rather than pass/fail impressions.
5. Capture lessons into the next sourcing cycle within 2 to 4 weeks after pilot review.

When teams measure these controls early, they reduce redesign probability, improve first-pass yield, and give finance leaders more confidence that project budgets reflect real manufacturing behavior rather than optimistic assumptions.

Common Questions from Procurement, Quality, and Project Leaders

The most frequent planning questions are rarely about headline processing speed. They tend to focus on risk concentration, delivery predictability, compliance exposure, and service life. Addressing these questions early improves both sourcing confidence and launch discipline.

How much design headroom is usually enough?

For industrial and B2B electronic products, a practical baseline is 15% to 30% reserve on memory and interfaces, plus thermal margin under the highest expected ambient condition. The exact number depends on firmware complexity, future connectivity plans, and expected product life, but zero-margin selection often becomes expensive after the first feature update.

When should buyers worry about lead time and lifecycle risk?

If standard lead times move beyond 20 weeks, or if a chipset family has limited package options and unclear roadmap communication, the sourcing review should escalate. Risk grows further when one device controls multiple critical functions such as communications, sensing, and power supervision without a practical alternate path.

What quality checks matter most during pilot build?

Focus on 4 areas: solder joint quality around fine-pitch packages, temperature rise under worst-case load, stability of power rails with real passive tolerances, and defect or rework patterns across the first production panels. These checks reveal whether the MCU and chipset choice is truly production-ready or only lab-ready.

Can a lower-cost alternate still be safe to use?

Yes, but only if equivalence is verified at the system level. Buyers should not approve alternates based solely on matching voltage, package, or capacitance values. Review electrical behavior, thermal impact, assembly compatibility, and compliance fit together. A small purchase-price saving can create outsized failure analysis or field return costs if the substitute behaves differently in production.

For organizations managing global EMS networks, these questions are not theoretical. They shape launch timing, inventory risk, warranty exposure, and the credibility of supplier negotiations. Early transparency is what converts component selection into a controlled business decision.

Building a Smarter Front-End Sourcing Strategy

The strongest MCU and chipset strategy starts before RFQs are issued. Teams should define a front-end sourcing model that links technical architecture to procurement thresholds, manufacturing capability, and lifecycle planning. That model should include preferred package families, acceptable lead-time bands, temperature-grade rules, and a documented approach to alternates for passives and supporting ICs.

Cross-functional alignment is essential. Engineers need evidence on PCB and thermal feasibility. Procurement needs benchmark data on supply continuity and manufacturability. Quality teams need stress-oriented reliability inputs. Project managers need realistic timing assumptions, often in the range of 2 to 6 weeks for qualification work depending on complexity. Finance needs visibility into total cost of ownership rather than isolated component price.

This is where independent engineering intelligence delivers real value. SCM supports organizations that need deeper visibility into semiconductor and EMS choices, especially where micro-tolerances, signal integrity, thermal behavior, and compliance reporting influence sourcing decisions. With structured benchmarking across PCB fabrication, SMT assembly, active and passive components, and thermal packaging, teams can compare options on technical facts rather than assumptions.
