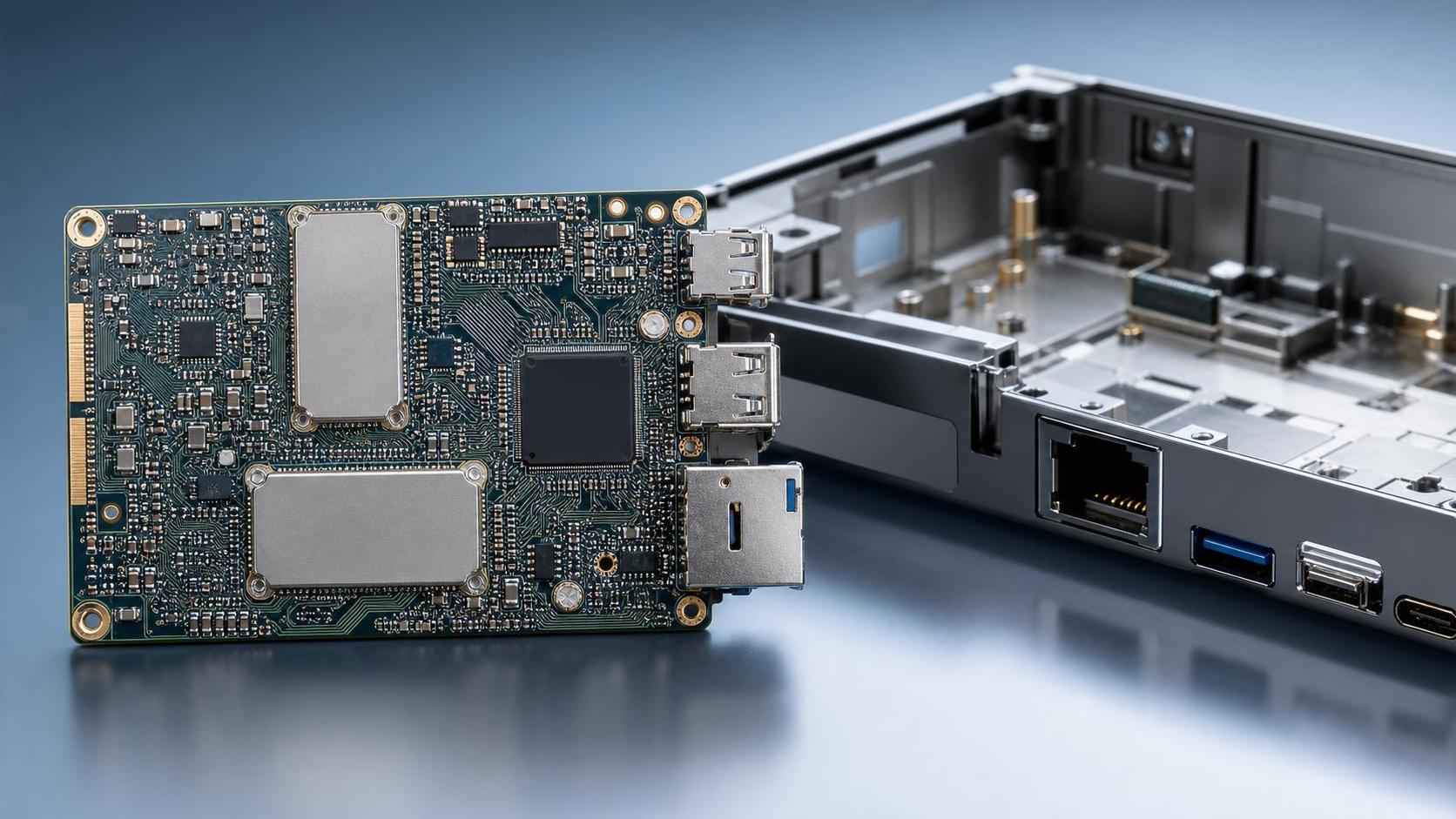

PCB EMI Shielding Mistakes That Cause Costly Redesigns

Why do PCB EMI shielding mistakes become redesign problems so quickly?

PCB EMI shielding issues rarely stay inside the lab. They usually surface during validation, compliance testing, or late customer acceptance.

That is why a small shielding oversight can turn into a schedule problem, a sourcing problem, and eventually a cost problem.

In practical PCB development, EMI is not only about radiation levels. It also affects signal integrity, grounding behavior, enclosure interaction, and assembly repeatability.

More importantly, shielding choices are often locked in too late. By the time emissions fail, stack-up, routing, component placement, and mechanical clearances are already frozen.

Independent engineering data helps here. Organizations such as SiliconCore Metrics track PCB fabrication capability, dielectric behavior, SMT precision, and reliability trends that influence shielding outcomes.

That broader view matters because EMI failures are rarely caused by one bad part. They usually come from a chain of assumptions made across design, layout, sourcing, and manufacturing.

Is the biggest mistake assuming a shield can fix a weak PCB layout?

Yes, and it is one of the most expensive assumptions in PCB EMI shielding work.

A metal can, gasket, or enclosure shield does not correct noisy return paths, poor layer transitions, or uncontrolled current loops.

When the PCB layout creates radiation at the source, shielding becomes a patch instead of a solution.

A common example is a high-speed interface routed across split reference planes. The emissions problem starts with return current disruption, not with missing metal coverage.

Another example appears in switch-mode power sections. Fast edge rates, long loops, and poor decoupling can create broadband noise that no simple shield placement will fully contain.

The better question early in the project is not, “What shield should be added?” It is, “What is generating the energy, and where is it coupling?”

• Check return path continuity before discussing shield hardware.
• Review stack-up symmetry and reference plane quality.
• Examine edge-rate control, decoupling placement, and via transitions.
• Confirm whether emissions are radiated, conducted, or enclosure-coupled.

When these basics are missed, the PCB redesign usually expands beyond shielding parts and into layer changes, component moves, and fresh compliance cycles.

Which PCB EMI shielding decisions are often made too late?

The late-stage decisions usually involve stack-up selection, shield footprint reservation, grounding strategy, and enclosure coordination.

In many programs, shielding enters the conversation only after pre-scan failure. At that point, the team is solving around fixed constraints.

That creates narrow options. A shield can may block rework access, interfere with thermal paths, or force taller components to move.

Ground stitching is another late miss. If the PCB was not designed with proper via fences and grounding points, shield attachment becomes inconsistent.

Mechanical teams may also finalize the enclosure before RF leakage paths are reviewed. Seams, connector openings, and cable exits then become hidden EMI escape points.

A simple planning table can keep those decisions visible before layout is frozen.

The pattern is clear. PCB EMI shielding works best when electrical, mechanical, and manufacturing assumptions are reviewed together, not one after another.

Are material and manufacturing details really that important for shielding performance?

They are often more important than expected, especially when the PCB operates at high frequencies or tight tolerances.

For example, dielectric consistency affects impedance stability. Impedance instability can increase reflections, mode conversion, and unintended emissions.

Copper roughness, plating uniformity, and solder mask variation also influence current behavior, especially in dense and fast-switching designs.

Then there is assembly variation. A shield can that sits perfectly in prototype may show grounding inconsistency in production if pad coplanarity or placement tolerance drifts.

This is where benchmark data becomes useful. Independent reports on PCB fabrication, SMT precision, and environmental reliability reduce guesswork before volume release.

In real projects, the mistake is not only choosing the wrong shield. It is choosing a design that depends on manufacturing perfection that the supply chain cannot repeat.

A more resilient PCB EMI shielding strategy asks whether the design can tolerate normal process variation while still passing compliance limits.

How can you tell whether a PCB shielding idea will save time or create more risk?

The quickest test is to compare the shielding idea against failure mode, implementation burden, and validation effort.

If a change adds hardware but does not reduce the actual noise source, the risk remains high.

If a change helps emissions but blocks test access, increases thermal density, or complicates assembly yield, the tradeoff may not be acceptable.

A useful screening approach is to review each PCB shielding option through these questions:

• Does it address the dominant emission source or only mask symptoms?
• Does it depend on a stack-up or grounding condition that is still uncertain?
• Will it affect thermal dissipation, rework access, or connector reliability?
• Can the PCB supplier and EMS line hold the needed tolerances repeatedly?
• Will the verification plan prove improvement before tooling and release?

That kind of review keeps teams from approving shielding changes that look fast on paper but create hidden validation debt.

What does a practical prevention plan look like before the next PCB build?

It starts earlier than many teams expect. Prevention begins at architecture, not after the first compliance setback.

One effective move is to tie EMI review to the same milestones used for stack-up approval, placement freeze, and pilot build release.

Another is to document assumptions clearly. If shield performance depends on via spacing, enclosure contact pressure, or dielectric tolerance, record it before sourcing begins.

In actual PCB programs, redesign risk drops when verification is staged instead of postponed.

• Run early layout reviews focused on return paths and noisy zones.
• Use pre-scan testing before mechanical details are fully locked.
• Compare material data and process capability, not only part price.
• Check shield attachment, coplanarity, and grounding in pilot builds.
• Build corrective options into the schedule before certification booking.

This is also where independent technical intelligence adds value. Data-driven reviews of PCB materials, SMT accuracy, and long-term reliability help teams avoid making shielding decisions in isolation.

The goal is not to overengineer every board. It is to identify where shielding, layout, and manufacturing interact before those interactions become redesign costs.

What should be checked first when a PCB EMI shielding failure appears?

Start with the emission path, not with emergency hardware changes.

Look at the frequency range, operating state, and location of the peak. Then connect that evidence to layout zones, power stages, clocks, connectors, and enclosure openings.

If the PCB fails only in one mode, the issue may be tied to switching behavior or interface activity rather than general shield weakness.

If failures shift between builds, manufacturing variation may be part of the story.

The most reliable next step is a short decision path:

• Confirm whether the source is on-board, cable-borne, or enclosure-coupled.
• Review PCB layout and grounding before adding more shielding metal.
• Compare prototype data with fabrication and assembly variation.
• Recheck stack-up, dielectric assumptions, and return current continuity.
• Prioritize fixes that reduce root-cause energy and preserve manufacturability.

PCB EMI shielding is most effective when it is treated as part of system design discipline, not as a late rescue measure.

Before the next build, review the board against source control, grounding, materials, enclosure leakage, and process capability. That checklist usually prevents the most expensive redesign loop.
