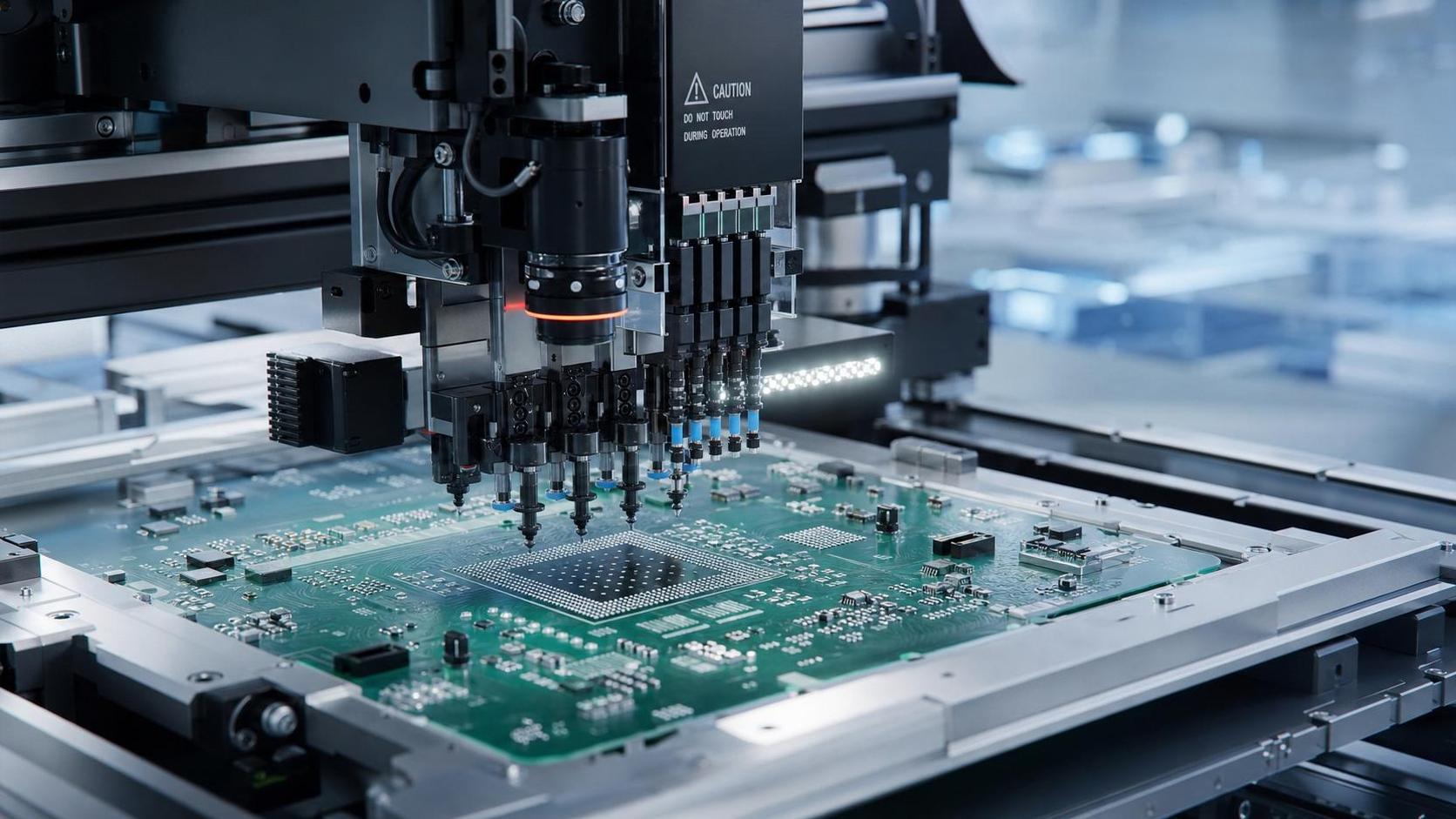

SMT Placement Accuracy: Key Specs That Affect Yield

Why SMT Placement Accuracy Matters More Than Many Teams Expect

SMT placement accuracy shapes far more than visual alignment on a populated board.

It affects solder joint geometry, tombstoning risk, opens, bridges, and long-term field reliability.

When package sizes shrink, the tolerance window becomes unforgiving very quickly.

That is why SMT placement capability is no longer a basic machine spec.

It is a practical indicator of process control, yield stability, and compliance readiness.

For assemblies using fine-pitch BGAs, CSPs, 01005 passives, or odd-shaped components, small deviations can create outsized losses.

A line may still run at speed, yet placement drift can silently erode first-pass yield.

In real production, the issue is rarely one number alone.

SMT placement performance comes from the interaction of machine mechanics, vision calibration, feeder repeatability, board support, and stencil quality.

So when evaluating assembly partners or internal lines, it helps to read the specs behind the headline.

The Core SMT Placement Specs That Influence Yield

Most vendors highlight speed first, but yield usually follows accuracy and consistency.

The most useful SMT placement metrics fall into a few categories.

1. X-Y Placement Accuracy

This is the lateral offset between the intended pad center and actual component position.

It is often expressed in microns under defined test conditions.

For SMT placement, the quoted value may look impressive, but the test method matters just as much.

A machine rated at high precision under ideal lab conditions may perform differently on warped production panels.

2. Rotational Accuracy

Angular misalignment is easy to underestimate until fine-pitch leads start pushing solder unevenly.

Rotational error affects QFPs, connectors, and chip components with narrow pad geometry.

Even slight rotation can increase bridging on one edge and insufficient wetting on the opposite side.

3. Repeatability

Repeatability tells you whether the SMT placement result stays tight over thousands of cycles.

This is often more valuable than a single best-case accuracy claim.

Stable repeatability reduces process drift and makes downstream inspection data more predictable.

4. Cpk and Process Capability

A strong SMT placement program should be supported by capability data, not just brochure tolerances.

Cpk shows whether the process stays comfortably inside the specification window.

This becomes especially important for automotive, industrial, and high-reliability applications.

5. Vision System Resolution

The placement head can only correct what the vision system can detect accurately.

Camera resolution, lighting control, fiducial recognition, and component library quality all influence SMT placement results.

If the vision system struggles with reflective leads or low-contrast bodies, accuracy degrades fast.

What Usually Causes SMT Placement Errors

From recent manufacturing trends, the bigger signal is complexity rather than volume alone.

As boards become denser, the root causes of placement error become more interconnected.

• Feeder variation that changes pickup position over time.
• Nozzle wear that reduces centering consistency.
• PCB warpage that distorts the actual component landing plane.
• Stencil print variation that leaves unstable solder paste deposits.
• Fiducial contamination or poor global-local registration strategy.
• Component dimensional variation across suppliers or lots.

This also means one weak upstream step can make SMT placement look worse than it really is.

A highly capable machine cannot fully compensate for poor pad design or inconsistent paste volume.

That is why technical reviews should examine the full assembly window, not isolated equipment claims.

How to Read SMT Placement Specifications Correctly

Spec sheets often compress important conditions into a small footnote.

That footnote can change the practical meaning of an SMT placement number.

A useful evaluation should ask several direct questions.

1. Was the value measured at 3 sigma or 6 sigma?
2. What component package was used in the test?
3. Was the board static, or under real conveyor conditions?
4. How often is calibration performed and documented?
5. Are results validated through SPI, AOI, and X-ray correlation?

In actual sourcing decisions, this is where strong suppliers separate themselves.

They can explain not only the SMT placement spec, but also the measurement context behind it.

That transparency is valuable when comparing different factories across regions or equipment brands.

The Link Between SMT Placement and Real Yield Outcomes

Yield losses rarely appear as a simple one-to-one placement defect count.

More often, SMT placement accuracy influences several hidden cost drivers at once.

• Higher rework time on fine-pitch and bottom-terminated components.
• More false calls and escapes during automated inspection.
• Reduced confidence during pilot builds and NPI transfers.
• Greater sensitivity to thermal cycling and vibration stress later.

For example, a marginal SMT placement offset may still pass reflow and AOI.

Yet it can create uneven solder fillets or void-sensitive joint behavior.

That risk becomes more visible under thermal shock, power cycling, or mechanical stress.

So the real value of better SMT placement is not only fewer immediate rejects.

It is stronger reliability confidence across the product lifecycle.

Key Benchmarks to Request During Technical Evaluation

If you are screening an EMS partner or benchmarking a new line, ask for evidence that connects SMT placement to control discipline.

This kind of review tends to produce better decisions than relying on speed rankings alone.

It also helps identify whether a supplier can scale from pilot to mass production without a yield cliff.

Practical Steps to Improve SMT Placement Performance

Improving SMT placement is usually less about one dramatic upgrade and more about disciplined process alignment.

• Match pad design, stencil aperture, and placement tolerance as one system.
• Use local fiducials for dense or critical component zones.
• Monitor feeder and nozzle wear before accuracy shifts become visible defects.
• Control PCB support to reduce dynamic flex during high-speed placement.
• Review component library images and centering data after every package change.
• Correlate placement offsets with field-return analysis, not only line-side alarms.

A more obvious signal appears when these actions are tracked with closed-loop data.

Once SPI, AOI, and maintenance records are connected, recurring SMT placement issues become easier to isolate.

That shortens debug cycles and improves confidence during product transfers.

Final Takeaway

SMT placement accuracy is not just an equipment headline.

It is a technical signal that connects machine capability, process discipline, and real manufacturing yield.

The smartest evaluations look beyond a single micron value.

They examine repeatability, calibration, inspection correlation, package experience, and statistical control.

If the goal is stable yield and long-term reliability, SMT placement should be reviewed as a system-level capability.

That approach makes technical comparisons sharper, risk decisions faster, and sourcing outcomes more dependable.
