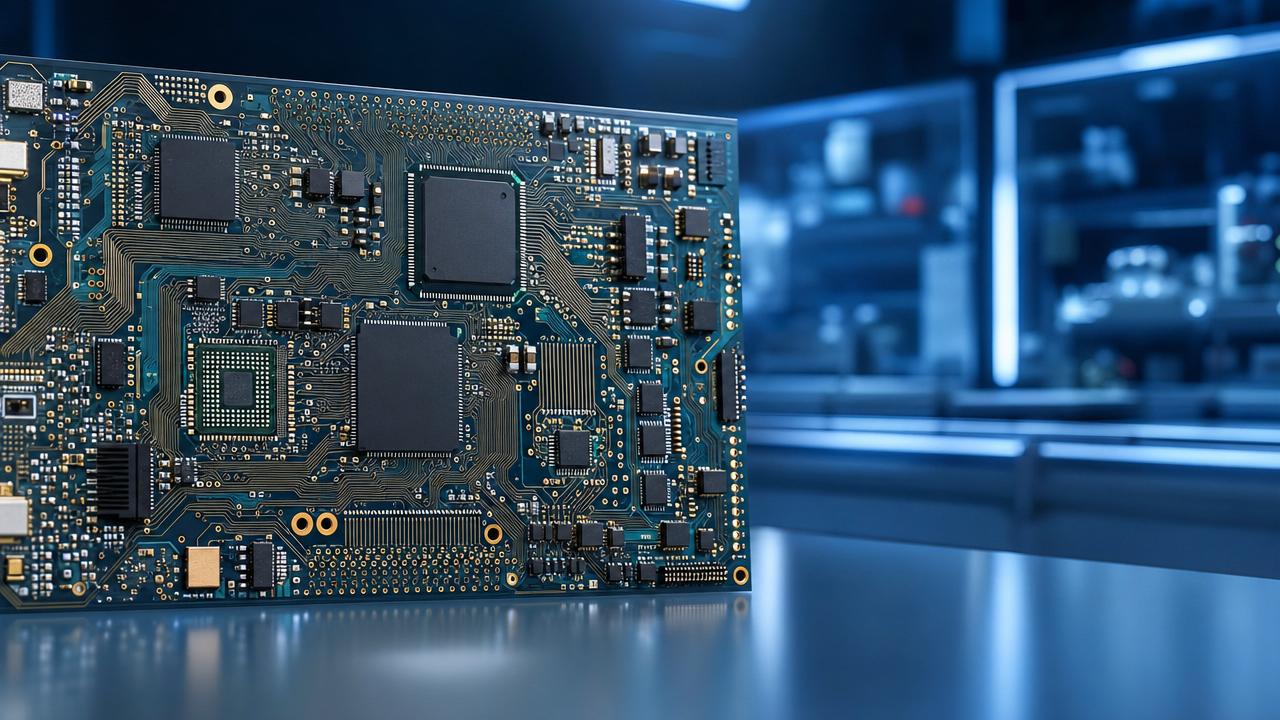

How High Density PCB Improves Signal Integrity in Compact Designs

In compact electronics, signal integrity is no longer a design afterthought—it is a performance threshold. A high density PCB enables tighter routing, shorter signal paths, and better control over impedance, crosstalk, and EMI in space-constrained systems. For technical evaluators, understanding how these design advantages translate into measurable reliability and manufacturing consistency is essential when benchmarking advanced PCB solutions.

Compact system design is shifting from miniaturization to controlled performance density

Across electronics, boards are carrying more channels, higher speeds, and tighter tolerances than previous generations. Size reduction alone no longer defines competitiveness.

The real shift is performance density. Designers now expect a high density PCB to support speed, thermal balance, and stable signal behavior together.

This trend appears in telecom modules, automotive control units, industrial sensors, medical electronics, and compact computing hardware. Board area shrinks while electrical complexity rises.

Under these conditions, signal integrity becomes a board-level benchmark. Return path continuity, via behavior, layer stackup discipline, and dielectric consistency matter more than ever.

A high density PCB helps because it shortens interconnect distance and improves routing efficiency. Yet the benefit depends on disciplined fabrication and validated engineering data.

The strongest trend signal is the rising sensitivity of compact layouts to electrical noise

As edge rates increase, even short traces behave like transmission lines. Small layout errors can produce large timing and waveform penalties.

A high density PCB reduces many of these risks by enabling shorter paths and better layer allocation. However, density also narrows process margins.

That dual effect explains why technical evaluation now focuses on measurable stackup control, copper geometry accuracy, and hole quality, not only routing count.

• Shorter traces reduce insertion loss and timing skew.
• Better reference plane access supports cleaner return currents.
• Finer routing spacing increases crosstalk sensitivity if geometry varies.
• More vias improve fan-out flexibility but can create discontinuities.
• Higher layer counts improve segregation but complicate fabrication stability.

The market direction is clear. A high density PCB is no longer evaluated by density alone, but by how well density supports stable electrical behavior.

Why high density PCB improves signal integrity in measurable engineering terms

The first advantage is path length reduction. Shorter paths mean lower delay variation, lower attenuation, and fewer opportunities for radiated emissions.

The second advantage is routing freedom. A high density PCB allows more direct escape routing from fine-pitch devices without excessive serpentine compensation.

The third advantage is stackup optimization. More layers make it easier to dedicate reference planes, separate noisy domains, and preserve target impedance.

A high density PCB also improves signal integrity by supporting cleaner breakout around BGA packages. This reduces unnecessary layer transitions and preserves waveform quality.

Another measurable gain comes from impedance discipline. Dense layouts can still maintain controlled impedance when dielectric constants and trace geometry remain tightly managed.

The improvement is strongest when physical density matches process control

Not every high density PCB automatically delivers signal integrity gains. Benefits depend on manufacturing precision across drilling, lamination, plating, and registration.

If line width shifts, resin distribution varies, or dielectric thickness drifts, the same compact design can produce unstable electrical performance across lots.

This is why independent benchmarking matters. Evaluators need evidence on Dk stability, copper profile, placement accuracy, and long-term reliability under stress.

The forces behind this trend are technical, not cosmetic

Several drivers explain why the high density PCB has become central to compact design strategy and signal integrity planning.

1. Higher interface speeds make trace discontinuities more visible.
2. Package pitch reduction demands finer escape routing.
3. Multi-function products require more circuitry in less space.
4. EMI compliance pressure favors shorter loops and cleaner returns.
5. Thermal and mechanical reliability now must coexist with electrical density.

These factors reinforce one another. When compactness, speed, and compliance converge, the high density PCB becomes a performance enabler rather than a packaging choice.

The impact extends across design validation, sourcing confidence, and lifecycle reliability

At the design stage, a high density PCB changes simulation assumptions. Models must include via transitions, plane reference quality, and material behavior at operating frequencies.

During prototype review, electrical performance can no longer be separated from fabrication data. Signal results must be compared with stackup records and process capability.

Over the product lifecycle, repeatability becomes the deciding factor. A high density PCB that passes once is less valuable than one that stays stable across batches.

• Design verification becomes more measurement-driven.
• Material selection requires better dielectric and thermal data.
• Supplier comparison increasingly depends on process transparency.
• Field reliability analysis must include interconnect structure behavior.

This broader impact aligns with SCM’s mission. Data-driven benchmarking helps translate advanced board claims into comparable technical evidence for real-world use.

What deserves the closest attention when evaluating a high density PCB

The most important question is not whether the board is dense. It is whether density is engineered to preserve predictable electrical behavior.

• Check impedance tolerance against target interfaces.
• Review dielectric constant consistency across frequency and lot.
• Examine microvia fill quality and interconnect reliability.
• Confirm copper roughness data for high-speed layers.
• Verify registration capability for fine-pitch structures.
• Assess SMT placement precision for dense assemblies.
• Compare stress-test results under thermal cycling and humidity.

When these indicators are available, a high density PCB can be judged with more confidence. Without them, layout density alone may hide electrical and reliability risk.

A practical response is to benchmark compact designs with cross-functional evidence

This response framework is especially useful for advanced electronics programs where the high density PCB affects compliance, quality yield, and long-term field behavior at once.

The next step is to treat high density PCB selection as an evidence-based engineering decision

As compact systems continue evolving, signal integrity will increasingly define acceptable board quality. The high density PCB sits at the center of that change.

The strongest results come from comparing layout intent with verified manufacturing capability, material data, and reliability outcomes. That approach reduces uncertainty before scaling production.

SCM supports this process through independent benchmarking, technical whitepapers, and standardized reporting across PCB fabrication, SMT assembly, semiconductors, passive components, and thermal packaging.

For organizations evaluating a high density PCB, the practical next move is clear: gather comparable electrical, mechanical, and process metrics before final design commitment.

That evidence-led method turns compact design from a risk point into a controlled performance advantage, especially where signal integrity decides product success.
